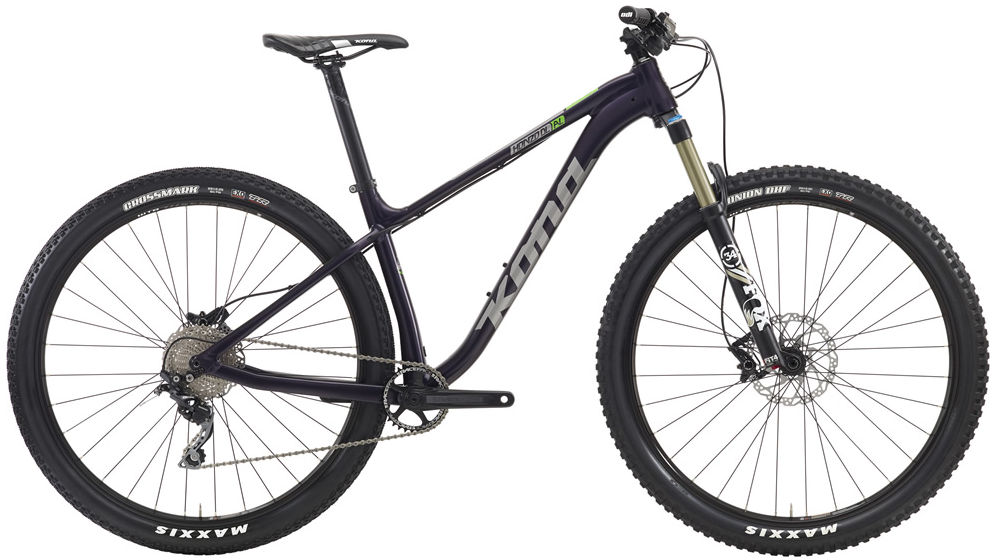

2016 Kona Honzo Al MK I geometry
Full frame geometry for the 2016 Kona Honzo Al MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 631 | 416 | 75 | 68 | 95 | 585 | 370 | 670 | 65 | 697 | 415 | 1104 | 46 |
| M | 635 | 435 | 75 | 68 | 100 | 605 | 420 | 670 | 65 | 718 | 415 | 1125 | 46 |
| L | 640 | 460 | 75 | 68 | 105 | 631 | 470 | 690 | 65 | 745 | 415 | 1152 | 46 |
| XL | 645 | 485 | 75 | 68 | 110 | 658 | 530 | 710 | 65 | 772 | 415 | 1179 | 46 |
All measurements in millimetres unless marked (°) for angles.
