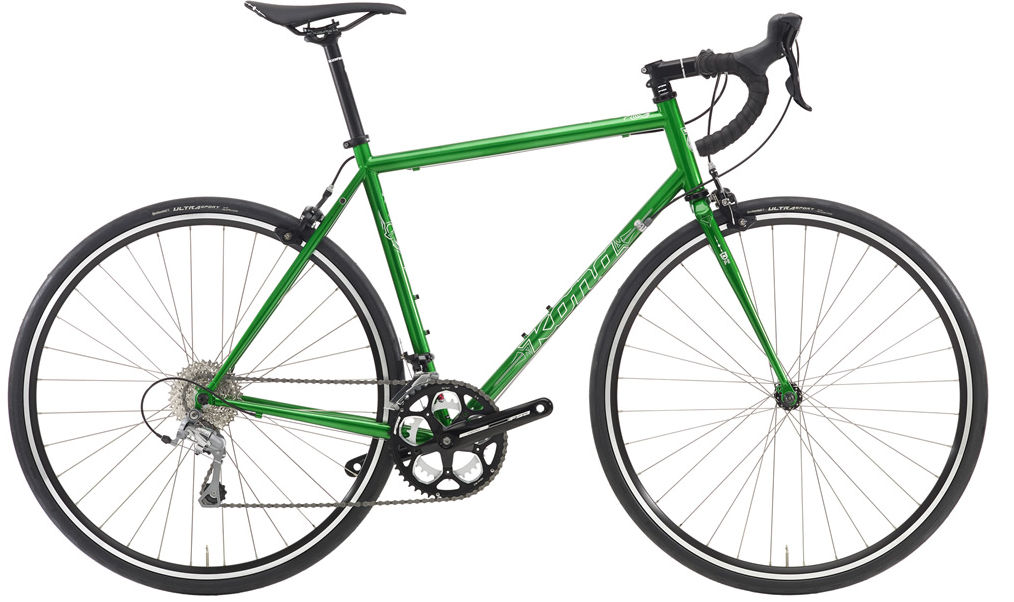

2016 Kona Honky Tonk geometry
Full frame geometry for the 2016 Kona Honky Tonk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 541 | 370 | 74.5 | 71 | 125 | 520 | 490 | 728 | 76 | 581 | 422 | 991 | 43 |
| 52 | 564 | 373 | 74 | 72 | 145 | 535 | 520 | 755 | 76 | 582 | 422 | 992 | 43 |
| 54 | 581 | 378 | 73.5 | 72 | 165 | 550 | 540 | 775 | 74 | 593 | 422 | 1003 | 43 |
| 56 | 600 | 382 | 73 | 72 | 185 | 565 | 560 | 795 | 74 | 602 | 422 | 1013 | 43 |
| 58 | 619 | 391 | 73 | 72.5 | 205 | 580 | 580 | 815 | 72 | 613 | 425 | 1027 | 43 |
| 61 | 640 | 398 | 72.5 | 73 | 225 | 600 | 610 | 845 | 72 | 621 | 425 | 1036 | 43 |
All measurements in millimetres unless marked (°) for angles.
