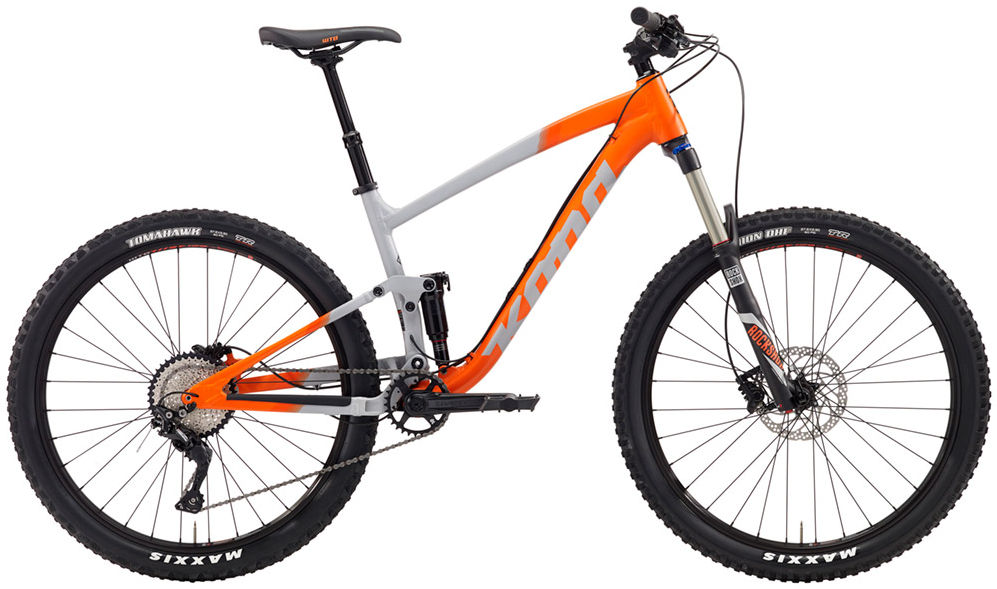

2018 Kona Hei Hei Trail geometry
Full frame geometry for the 2018 Kona Hei Hei Trail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 592 | 385 | 75 | 68 | 105 | 543 | 345 | 710 | 17 | 663 | 425 | 1087 | 42 |
| S | 601 | 405 | 75 | 68 | 115 | 566 | 370 | 728 | 17 | 687 | 425 | 1111 | 42 |
| M | 610 | 430 | 75 | 68 | 125 | 594 | 420 | 766 | 17 | 715 | 425 | 1140 | 42 |
| L | 620 | 455 | 75 | 68 | 135 | 622 | 470 | 768 | 17 | 744 | 425 | 1169 | 42 |
| XL | 629 | 485 | 75 | 68 | 145 | 655 | 530 | 788 | 17 | 778 | 425 | 1202 | 42 |
All measurements in millimetres unless marked (°) for angles.
