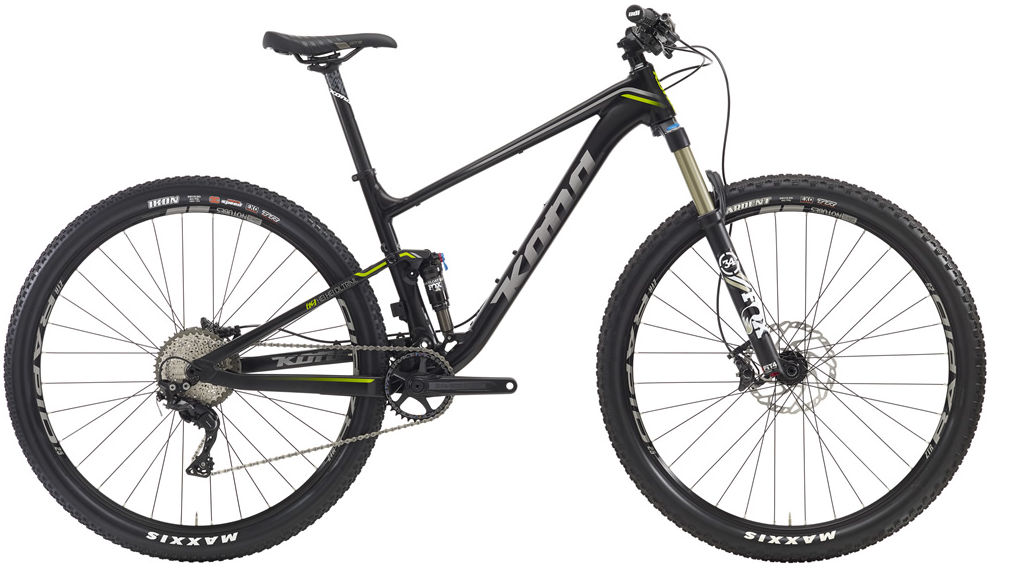

2016 Kona Hei Hei MK I geometry
Full frame geometry for the 2016 Kona Hei Hei MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 394 | 74 | 68 | 95 | 563 | 370 | 700 | 34 | 673 | 430 | 1100 | 46 |
| M | 606 | 420 | 74 | 68 | 105 | 590 | 420 | 700 | 34 | 701 | 430 | 1129 | 46 |
| L | 616 | 444 | 74 | 68 | 115 | 618 | 470 | 714 | 34 | 730 | 430 | 1158 | 46 |
| XL | 626 | 475 | 74 | 68 | 125 | 650 | 530 | 740 | 34 | 763 | 430 | 1191 | 46 |
All measurements in millimetres unless marked (°) for angles.
