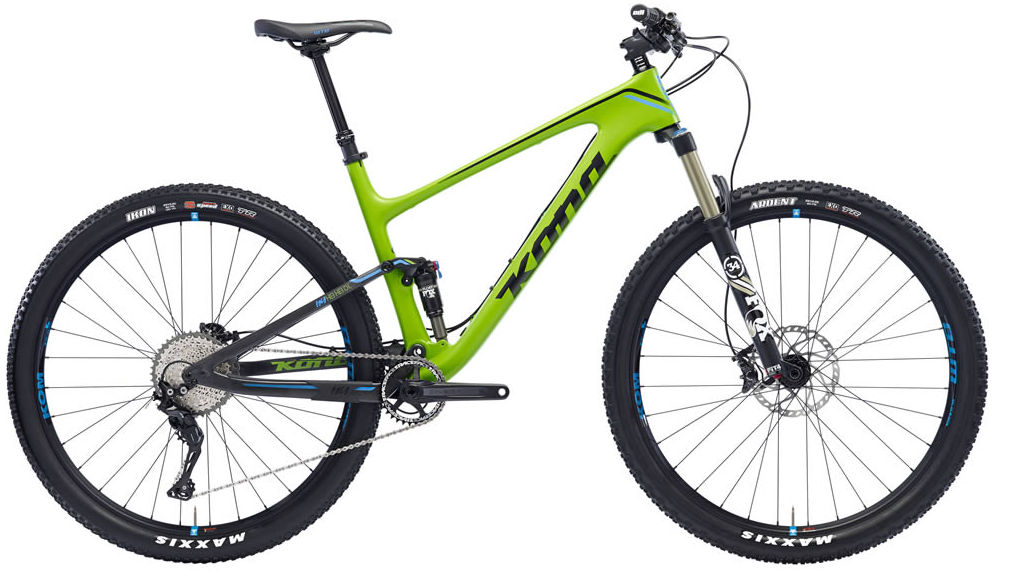

2016 Kona Hei Hei Carbon geometry
Full frame geometry for the 2016 Kona Hei Hei Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 396 | 74 | 68 | 95 | 565 | 370 | 750 | 36 | 677 | 430 | 1104 | 51 |
| M | 605 | 421 | 74 | 68 | 105 | 593 | 420 | 750 | 36 | 705 | 430 | 1133 | 51 |
| L | 615 | 446 | 74 | 68 | 115 | 621 | 470 | 760 | 36 | 734 | 430 | 1161 | 51 |
| XL | 624 | 476 | 74 | 68 | 125 | 654 | 530 | 780 | 36 | 767 | 430 | 1195 | 51 |
All measurements in millimetres unless marked (°) for angles.
