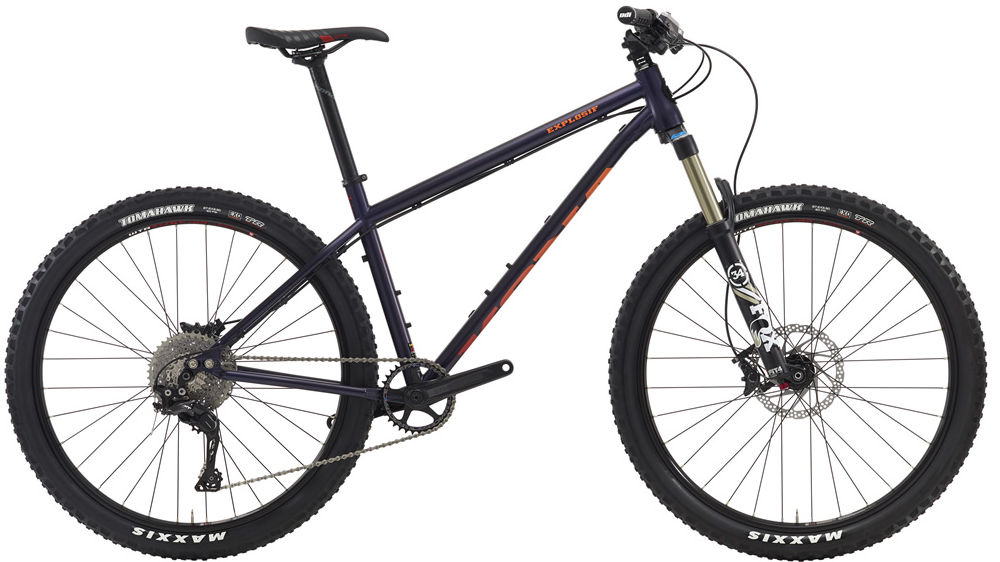

2016 Kona Explosif geometry
Full frame geometry for the 2016 Kona Explosif, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 402 | 73 | 67.5 | 100 | 583 | 370 | 665 | 42 | 677 | 420 | 1093 | 42 |
| M | 605 | 427 | 73 | 67.5 | 115 | 612 | 420 | 710 | 42 | 707 | 420 | 1124 | 42 |
| L | 614 | 452 | 73 | 67.5 | 125 | 640 | 470 | 750 | 42 | 736 | 420 | 1153 | 42 |
| XL | 628 | 482 | 73 | 67.5 | 140 | 674 | 530 | 800 | 42 | 771 | 420 | 1188 | 42 |
All measurements in millimetres unless marked (°) for angles.
