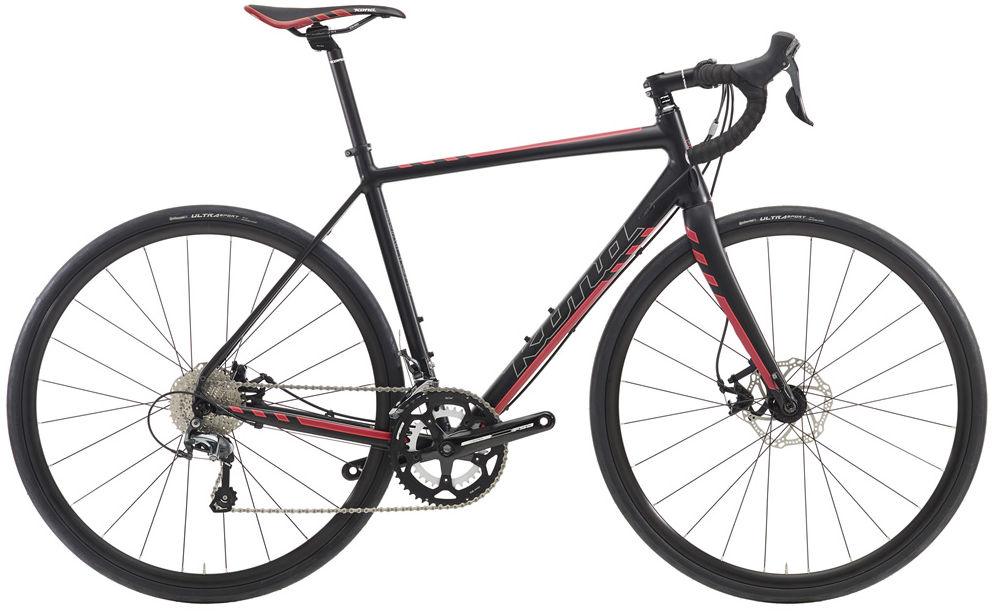

2016 Kona Esatto Disc geometry
Full frame geometry for the 2016 Kona Esatto Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 535 | 372 | 74.5 | 71 | 125 | 520 | 490 | 723 | 76 | 581 | 422 | 991 | 45 |
| 52 | 558 | 375 | 74 | 72 | 145 | 535 | 520 | 751 | 76 | 583 | 422 | 993 | 45 |
| 54 | 575 | 380 | 73.5 | 72 | 165 | 550 | 540 | 772 | 74 | 593 | 422 | 1005 | 45 |
| 56 | 594 | 383 | 73 | 72 | 185 | 565 | 560 | 790 | 74 | 603 | 422 | 1014 | 45 |
| 58 | 613 | 393 | 73 | 72.5 | 205 | 580 | 580 | 812 | 72 | 614 | 425 | 1028 | 45 |
| 61 | 634 | 400 | 72.5 | 73 | 225 | 600 | 610 | 839 | 72 | 622 | 425 | 1037 | 45 |
All measurements in millimetres unless marked (°) for angles.
