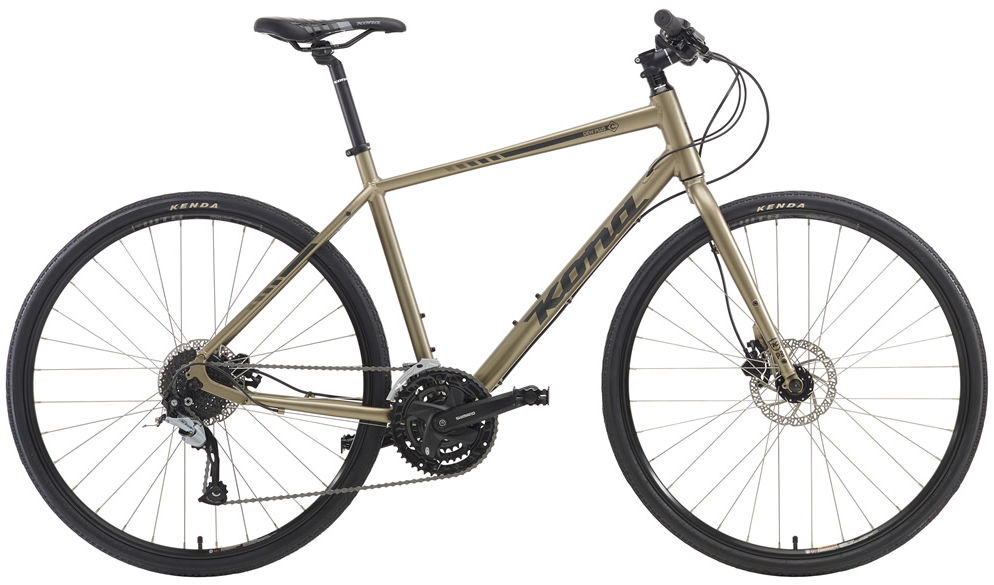

2016 Kona Dew Plus geometry
Full frame geometry for the 2016 Kona Dew Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S/46 | 554 | 384 | 74.5 | 70 | 120 | 538 | 460 | 695 | 70 | 618 | 450 | 1058 | 50 |
| SM/48 | 573 | 392 | 74 | 70 | 140 | 556 | 480 | 715 | 70 | 632 | 450 | 1073 | 50 |
| M/52 | 592 | 401 | 73.5 | 70 | 160 | 576 | 520 | 750 | 70 | 648 | 450 | 1088 | 50 |
| ML/55 | 611 | 407 | 73 | 70 | 180 | 594 | 550 | 775 | 70 | 661 | 450 | 1102 | 50 |
| L/57 | 630 | 417 | 72.5 | 70 | 200 | 615 | 570 | 800 | 70 | 677 | 450 | 1118 | 50 |
| XL/59 | 648 | 425 | 72 | 70 | 220 | 636 | 590 | 816 | 70 | 693 | 450 | 1134 | 50 |
All measurements in millimetres unless marked (°) for angles.
