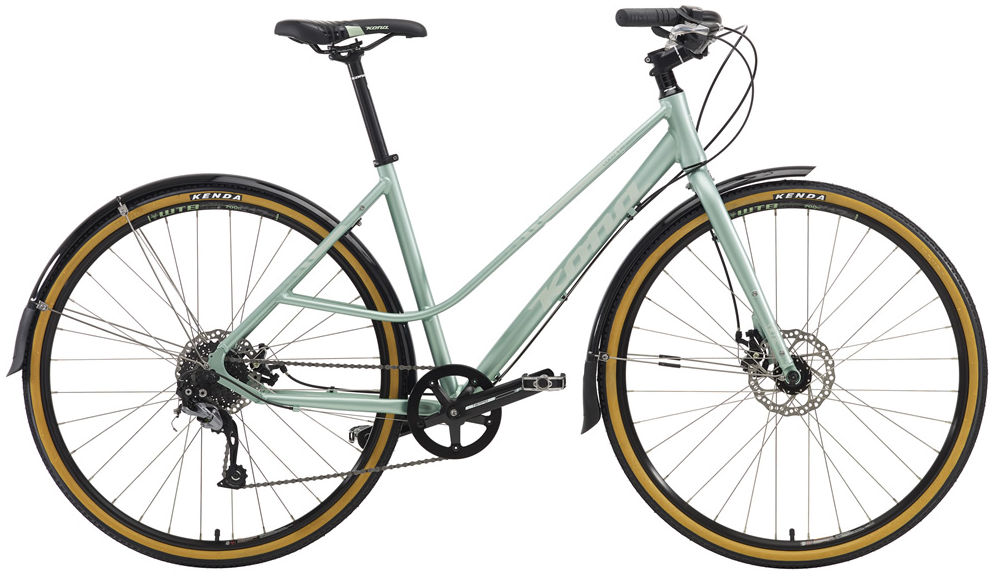

2016 Kona Coco geometry
Full frame geometry for the 2016 Kona Coco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 555 | 361 | 74 | 70.5 | 115 | 520 | 420 | 490 | 72 | 589 | 440 | 1019 | 50 |
| M | 566 | 388 | 74 | 70.5 | 130 | 550 | 470 | 495 | 69 | 621 | 440 | 1051 | 50 |
| L | 585 | 412 | 74 | 70.5 | 150 | 580 | 520 | 495 | 69 | 652 | 440 | 1083 | 50 |
| XL | 604 | 426 | 74 | 70.5 | 170 | 610 | 540 | 495 | 69 | 671 | 440 | 1102 | 50 |
All measurements in millimetres unless marked (°) for angles.
