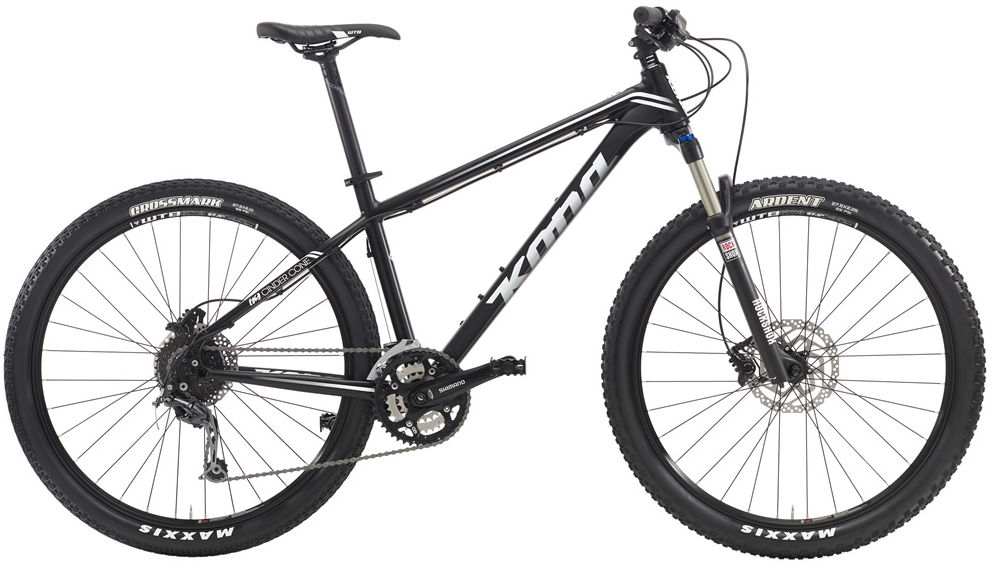

2016 Kona Cinder Cone MK I geometry
Full frame geometry for the 2016 Kona Cinder Cone MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 403 | 74 | 68.5 | 100 | 570 | 370 | 660 | 50 | 660 | 425 | 1080 | 42 |
| M | 598 | 428 | 74 | 68.5 | 115 | 599 | 420 | 706 | 50 | 690 | 425 | 1111 | 42 |
| L | 607 | 452 | 74 | 68.5 | 125 | 626 | 470 | 748 | 50 | 718 | 425 | 1139 | 42 |
| XL | 621 | 482 | 74 | 68.5 | 140 | 660 | 530 | 798 | 50 | 754 | 425 | 1174 | 42 |
All measurements in millimetres unless marked (°) for angles.
