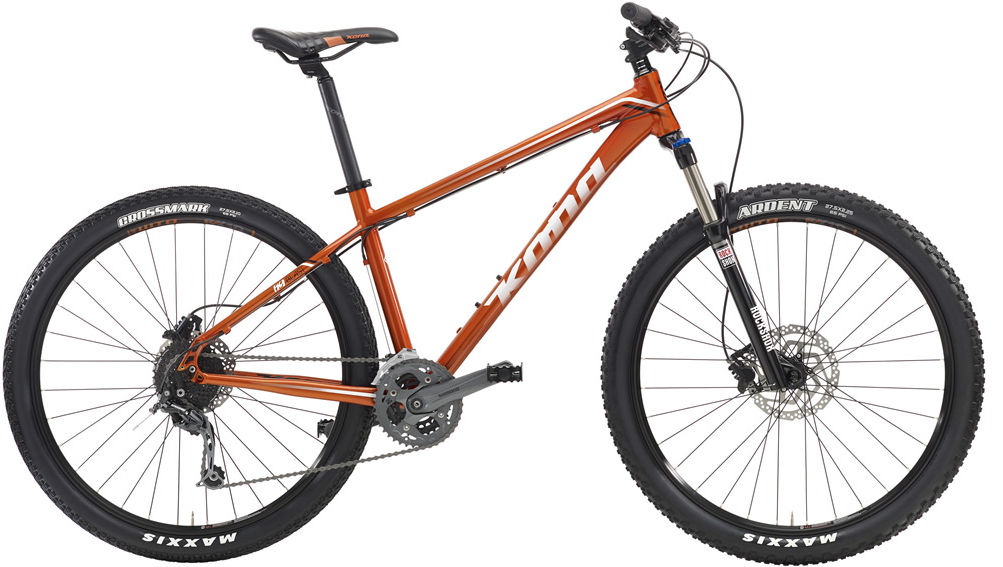

2016 Kona Blast geometry
Full frame geometry for the 2016 Kona Blast, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 587 | 402 | 74 | 68.5 | 100 | 570 | 370 | 655 | 50 | 660 | 425 | 1080 | 42 |
| M | 601 | 427 | 74 | 68.5 | 115 | 599 | 420 | 700 | 50 | 691 | 425 | 1111 | 42 |
| L | 610 | 451 | 74 | 68.5 | 125 | 626 | 470 | 740 | 50 | 719 | 425 | 1139 | 42 |
| XL | 624 | 481 | 74 | 68.5 | 140 | 660 | 530 | 790 | 50 | 754 | 425 | 1174 | 42 |
All measurements in millimetres unless marked (°) for angles.
