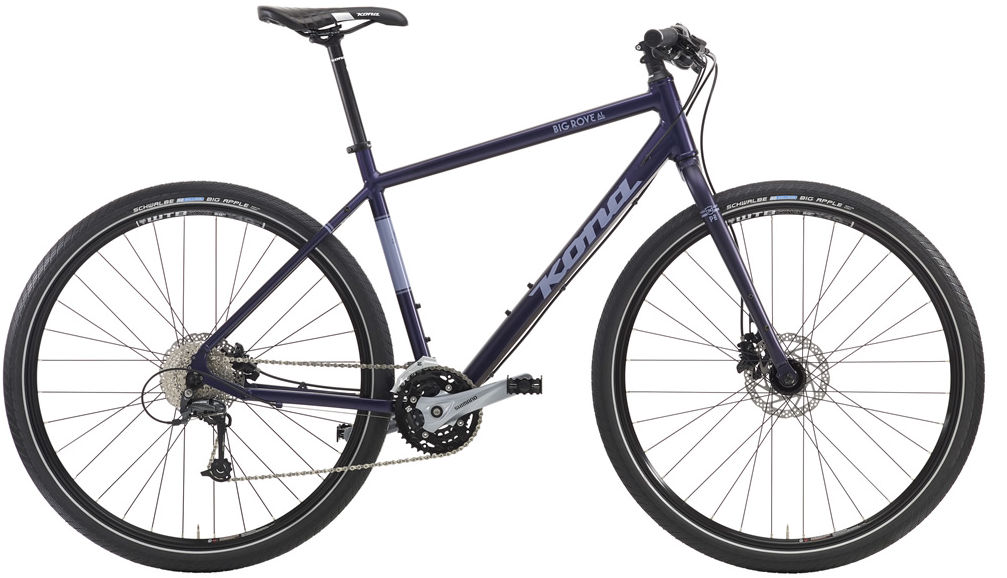

2016 Kona Big Rove AL geometry
Full frame geometry for the 2016 Kona Big Rove AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM/48 | 579 | 399 | 74.5 | 70.5 | 115 | 560 | 440 | 715 | 62 | 639 | 445 | 1076 | 50 |
| M/52 | 594 | 405 | 74 | 70.5 | 130 | 575 | 480 | 750 | 62 | 649 | 445 | 1087 | 50 |
| ML/55 | 610 | 410 | 73.5 | 71 | 150 | 590 | 510 | 785 | 57 | 655 | 445 | 1094 | 50 |
| L/57 | 628 | 418 | 73 | 71 | 170 | 610 | 540 | 810 | 57 | 670 | 445 | 1109 | 50 |
| XL/59 | 652 | 424 | 72.5 | 71 | 195 | 630 | 560 | 830 | 57 | 685 | 445 | 1124 | 50 |
All measurements in millimetres unless marked (°) for angles.
