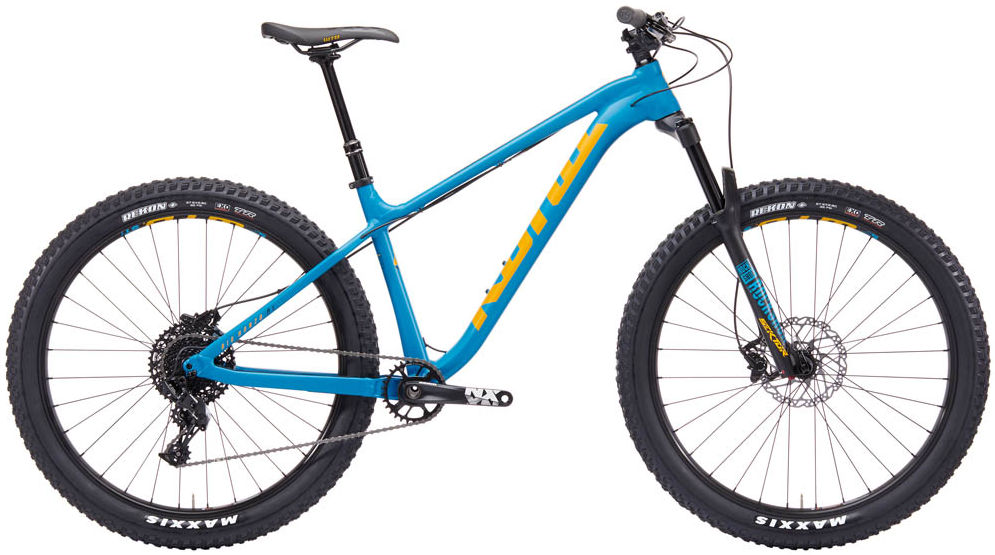

2019 Kona Big Honzo DL geometry
Full frame geometry for the 2019 Kona Big Honzo DL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 425 | 75 | 67.5 | 95 | 591 | 370 | 725 | 50 | 718 | 430 | 1144 | 51 |
| M | 630 | 450 | 75 | 67.5 | 105 | 619 | 420 | 725 | 50 | 747 | 430 | 1173 | 51 |
| L | 639 | 475 | 75 | 67.5 | 115 | 646 | 470 | 735 | 50 | 776 | 430 | 1201 | 51 |
| XL | 649 | 510 | 75 | 67.5 | 125 | 684 | 530 | 760 | 50 | 815 | 430 | 1240 | 51 |
All measurements in millimetres unless marked (°) for angles.
