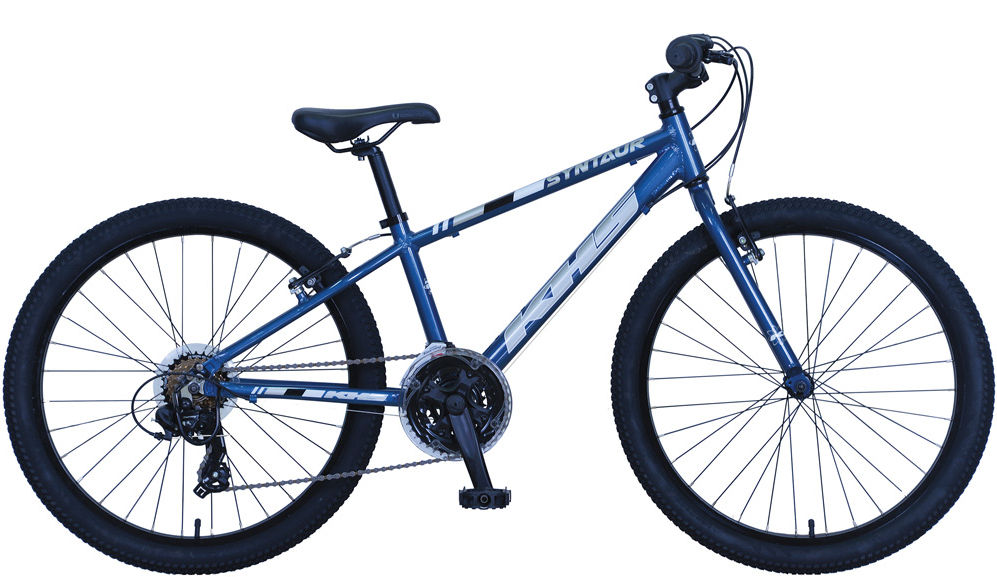

2018 KHS Syntaur geometry
Full frame geometry for the 2018 KHS Syntaur, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 467 | 356 | 72 | 70 | 110 | 518 | 320 | 642 | 424 |
All measurements in millimetres unless marked (°) for angles.
