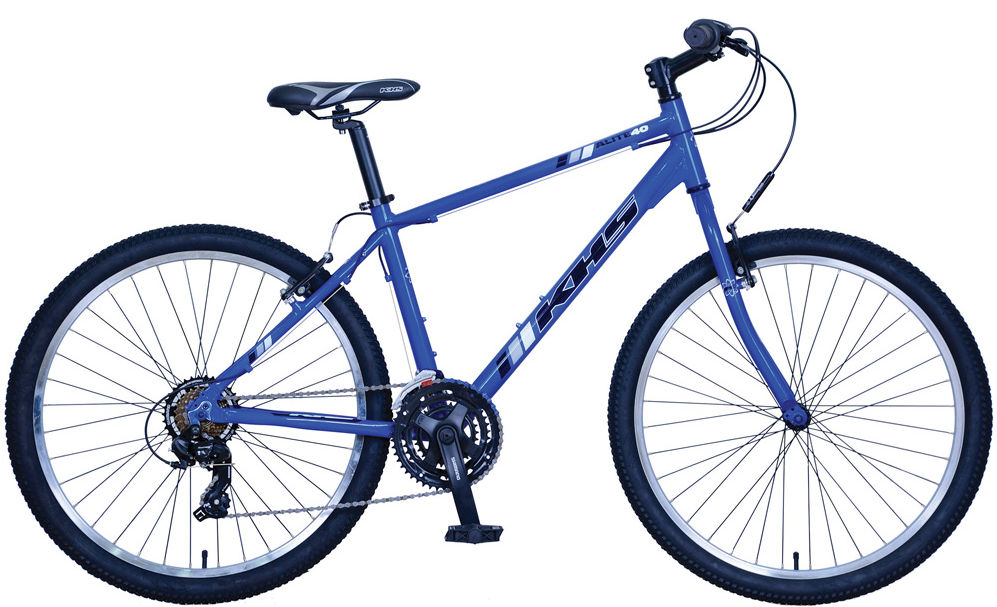

2018 KHS Alite 40 geometry
Full frame geometry for the 2018 KHS Alite 40, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 506 | 397 | 73 | 71 | 115 | 552 | 381 | 713 | 430 |
| XS | 507 | 371 | 73 | 70 | 110 | 526 | 305 | 665 | 425 |
| M | 520 | 413 | 73 | 71 | 130 | 572 | 432 | 746 | 430 |
| S-Low | 520 | 403 | 73 | 71 | 130 | 562 | 406 | 642 | 430 |
| L | 534 | 429 | 73 | 71 | 145 | 592 | 483 | 779 | 430 |
All measurements in millimetres unless marked (°) for angles.
