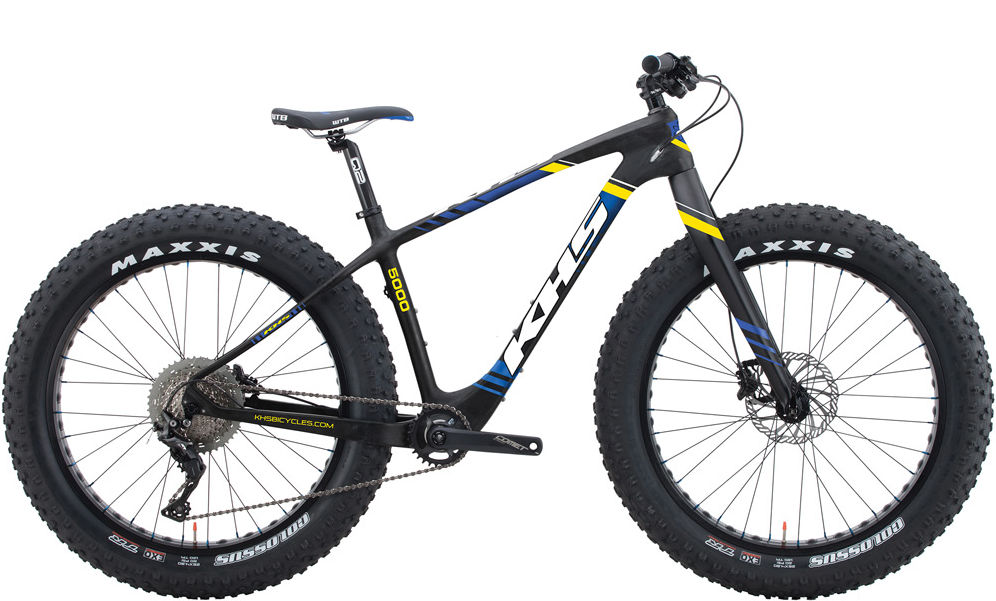

2018 KHS 4 Season Carbon geometry
Full frame geometry for the 2018 KHS 4 Season Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 588 | 405 | 73 | 70 | 110 | 585 | 394 | 768 | 460 |
| M | 599 | 417 | 73 | 70.5 | 120 | 600 | 440 | 784 | 460 |
| L | 613 | 428 | 73 | 70.5 | 135 | 615 | 483 | 816 | 460 |
All measurements in millimetres unless marked (°) for angles.
