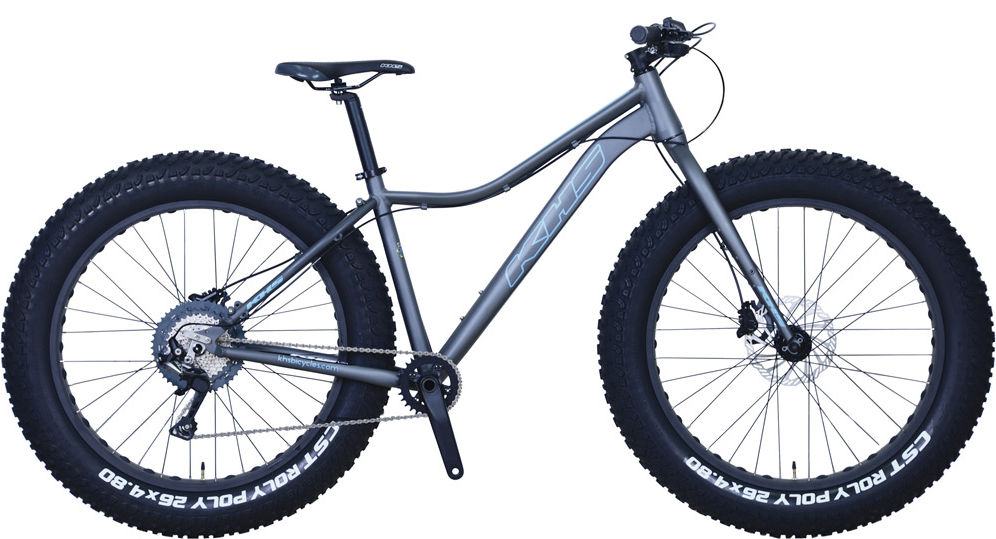

2018 KHS 4 Season Alloy geometry
Full frame geometry for the 2018 KHS 4 Season Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 595 | 401 | 73 | 68.5 | 115 | 583 | 381 | 713 | 475 |
| M | 612 | 414 | 73 | 68.5 | 135 | 602 | 432 | 753 | 475 |
| L | 631 | 428 | 73 | 68.5 | 155 | 622 | 483 | 791 | 475 |
| XL | 649 | 440 | 73 | 68.5 | 175 | 640 | 533 | 832 | 475 |
All measurements in millimetres unless marked (°) for angles.
