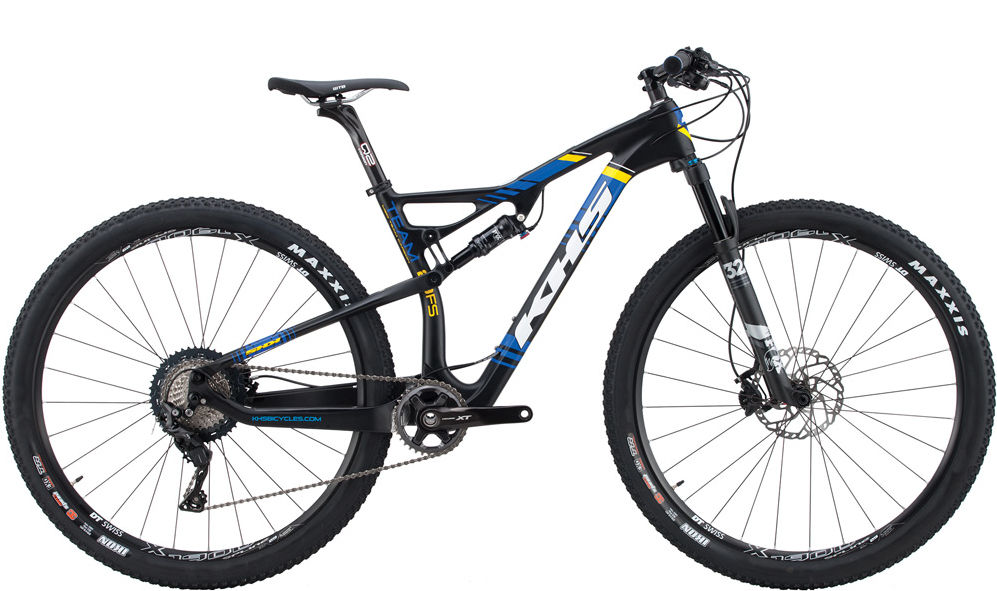

2018 KHS 29 FS / Prescott geometry
Full frame geometry for the 2018 KHS 29 FS / Prescott, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 586 | 400 | 73.8 | 68 | 100 | 570 | 400 | 438 |
| M | 590 | 429 | 73.8 | 68 | 105 | 600 | 445 | 438 |
| L | 604 | 445 | 73.8 | 68 | 120 | 620 | 483 | 438 |
All measurements in millimetres unless marked (°) for angles.
