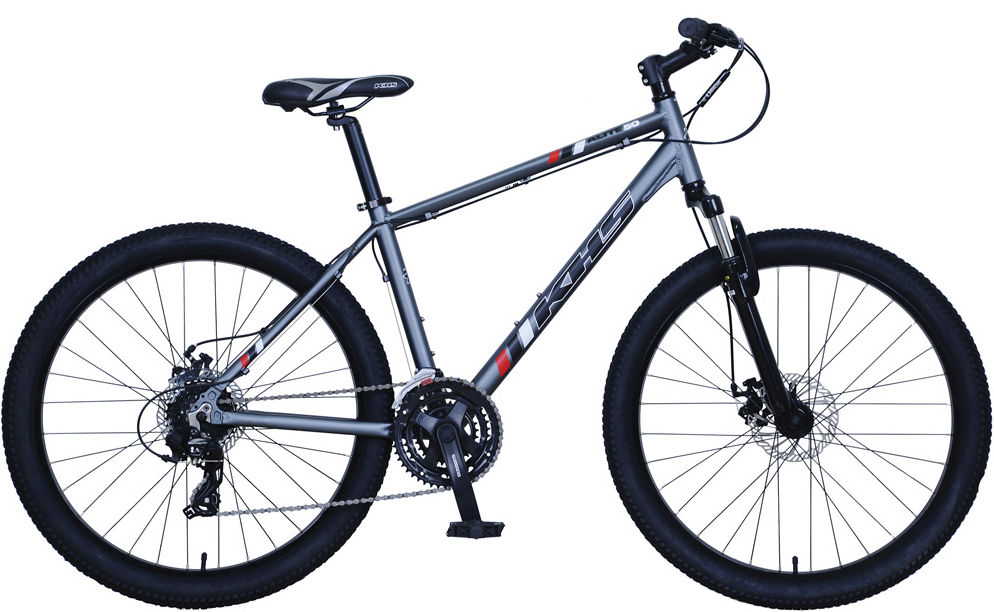

2018 KHS Alite 50 geometry
Full frame geometry for the 2018 KHS Alite 50, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 571 | 361 | 73 | 71 | 100 | 535 | 330 | 712 | 430 |
| S | 585 | 371 | 73 | 71 | 115 | 550 | 381 | 744 | 430 |
| M | 599 | 387 | 73 | 71 | 130 | 570 | 432 | 775 | 430 |
| ML | 599 | 387 | 73 | 71 | 130 | 571 | 432 | — | 430 |
| S-Low | 599 | 387 | 73 | 71 | 130 | 571 | 355 | — | 430 |
| L | 613 | 403 | 73 | 71 | 145 | 590 | 483 | 806 | 430 |
| XL | 632 | 412 | 73 | 71 | 165 | 605 | 533 | 840 | 430 |
All measurements in millimetres unless marked (°) for angles.
