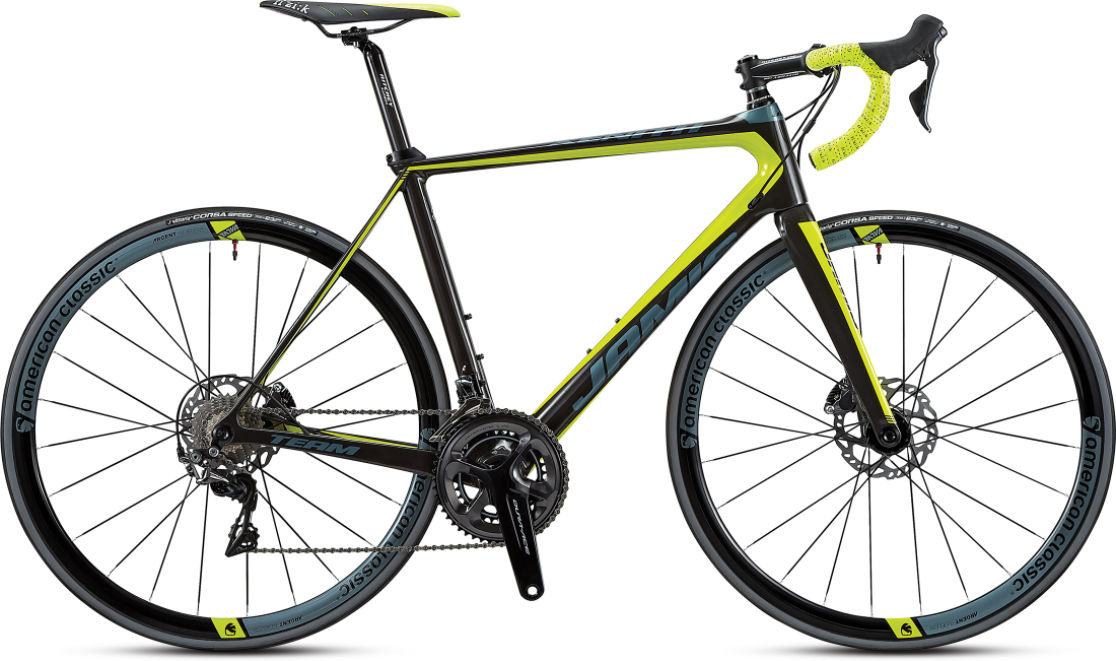

2017 Jamis Xenith geometry
Full frame geometry for the 2017 Jamis Xenith, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 496 | 363 | 73 | 71.5 | 100 | 515 | 713 | 68 | 405 | 958 | 50 |
| 51 | 517 | 371 | 73 | 72 | 120 | 529 | 741 | 68 | 405 | 969 | 50 |
| 54 | 542 | 378 | 73 | 73 | 140 | 544 | 764 | 68 | 405 | 967 | 43 |
| 56 | 561 | 394 | 73 | 73 | 160 | 565 | 780 | 68 | 405 | 988 | 43 |
| 58 | 580 | 402 | 73 | 73 | 180 | 580 | 797 | 68 | 405 | 1003 | 43 |
| 61 | 599 | 407 | 73 | 73 | 200 | 590 | 815 | 68 | 405 | 1014 | 43 |
All measurements in millimetres unless marked (°) for angles.
