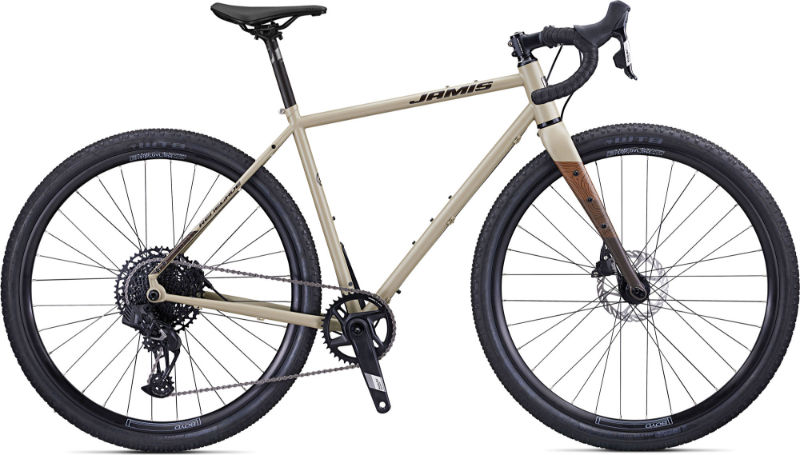

2026 Jamis Steel Renegade S1 geometry
Full frame geometry for the 2026 Jamis Steel Renegade S1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 528 | 370 | 73 | 70 | 85 | 531 | 450 | 733 | 80 | 450 | 1029 | 50 |
| 51 | 545 | 375 | 73 | 70 | 104 | 542 | 480 | 765 | 80 | 450 | 1040 | 50 |
| 54 | 575 | 380 | 73 | 71 | 132 | 556 | 510 | 794 | 80 | 450 | 1046 | 50 |
| 56 | 605 | 390 | 73 | 71 | 163 | 575 | 530 | 819 | 80 | 450 | 1067 | 50 |
| 58 | 630 | 400 | 73 | 71 | 189 | 593 | 550 | 847 | 80 | 450 | 1085 | 50 |
| 61 | 650 | 410 | 73 | 71 | 211 | 609 | 570 | 860 | 80 | 450 | 1102 | 50 |
All measurements in millimetres unless marked (°) for angles.
