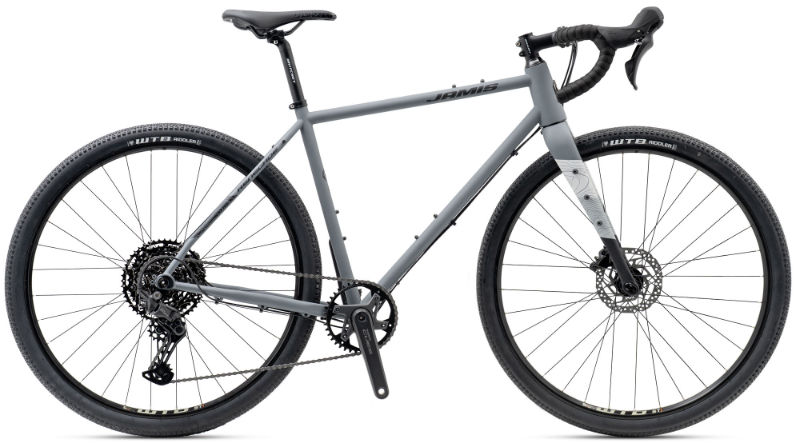

2026 Jamis Steel Renegade S3 geometry

Name: 2026 Jamis Steel Renegade S3
Brand: Jamis

Full frame geometry for the 2026 Jamis Steel Renegade S3, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
48	527.5	360	72	71	80	532	450	731	80	435	995	50
51	545	370	72	71	99	547	480	754	80	435	1010	50
54	575	380	72	71	130	567	510	783	80	435	1030	50
56	605	390	72	71	162	587	530	808	80	435	1051	50
58	630	400	72	71	189	604	550	830	80	435	1070	50
61	650	410	72	71	210	621	570	849.5	80	435	1085	50

All measurements in millimetres unless marked (°) for angles.
