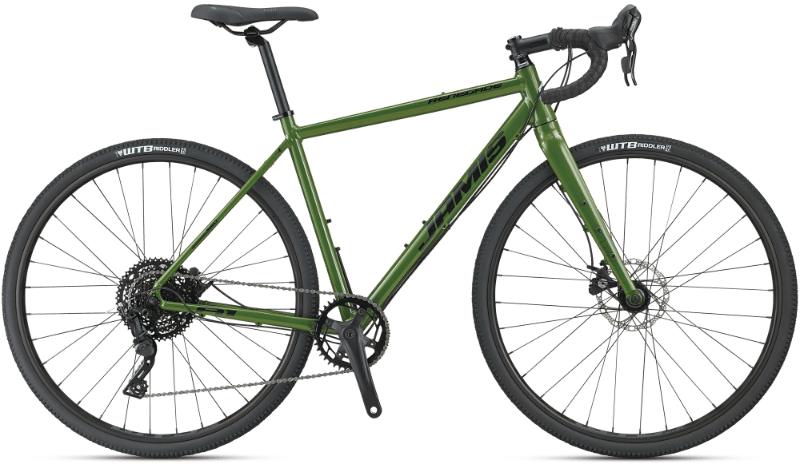

2025 Jamis Alloy Renegade geometry

Name: 2025 Jamis Alloy Renegade
Brand: Jamis

Full frame geometry for the 2025 Jamis Alloy Renegade, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
48	527.5	360	72	71	90	532	450	722	80	435	1000	50
51	545	370	72	71	110	547	480	746	80	435	1010	50
54	575	380	72	71	140	567	510	774	80	435	1030	50
56	605	390	72	71	175	587	530	798	80	435	1051.2	50
58	630	400	72	71	200	604	550	820	80	435	1070	50
61	650	410	72	71	220	621	570	839	80	435	1085	50

All measurements in millimetres unless marked (°) for angles.
