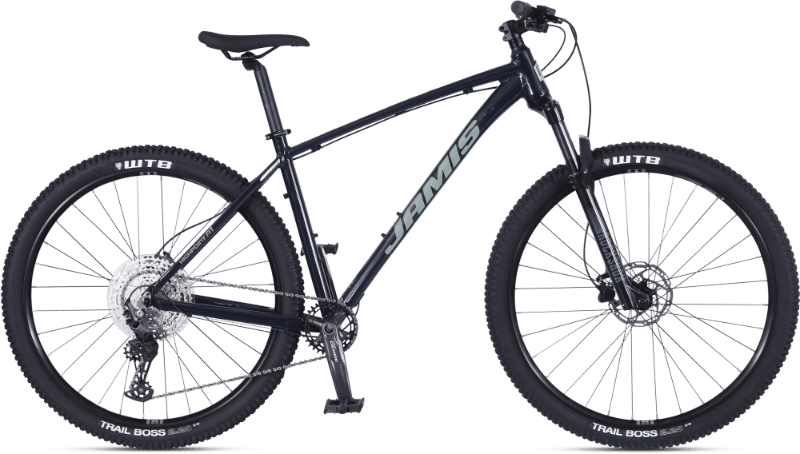

2026 Jamis Highpoint geometry
Full frame geometry for the 2026 Jamis Highpoint, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15.5" | 635 | 403 | 74 | 68 | 90 | 585 | 763 | 60 | 440 | 1122 |
| 17" | 644 | 425 | 74 | 68 | 100 | 610 | 799 | 60 | 440 | 1152 |
| 19" | 653 | 447 | 74 | 68 | 110 | 635 | 836 | 60 | 440 | 1178 |
| 21" | 663 | 470 | 74 | 68 | 120 | 660 | 868 | 60 | 440 | 1204 |
All measurements in millimetres unless marked (°) for angles.
