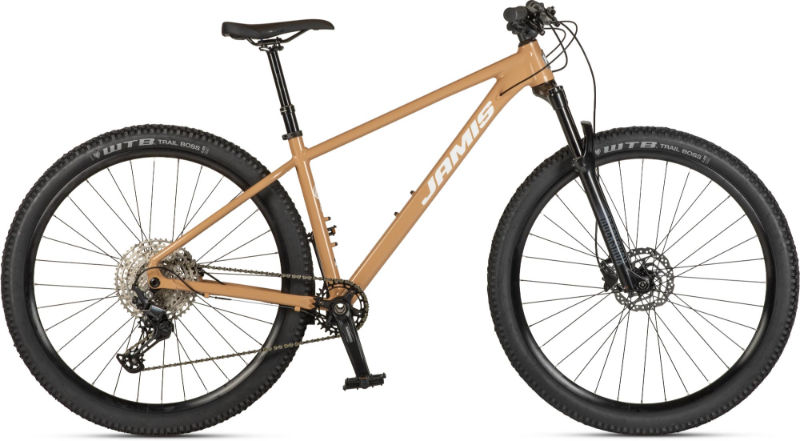

2026 Jamis Highpoint V2 geometry
Full frame geometry for the 2026 Jamis Highpoint V2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 628 | 418 | 74 | 68 | 90 | 598 | 763 | 60 | 440 | 1126 |
| M | 637 | 440 | 74 | 68 | 100 | 623 | 799 | 60 | 440 | 1152 |
| L | 646 | 462 | 74 | 68 | 110 | 647 | 836 | 60 | 440 | 1178 |
| XL | 656 | 484 | 74 | 68 | 120 | 672 | 868 | 60 | 440 | 1204 |
All measurements in millimetres unless marked (°) for angles.
