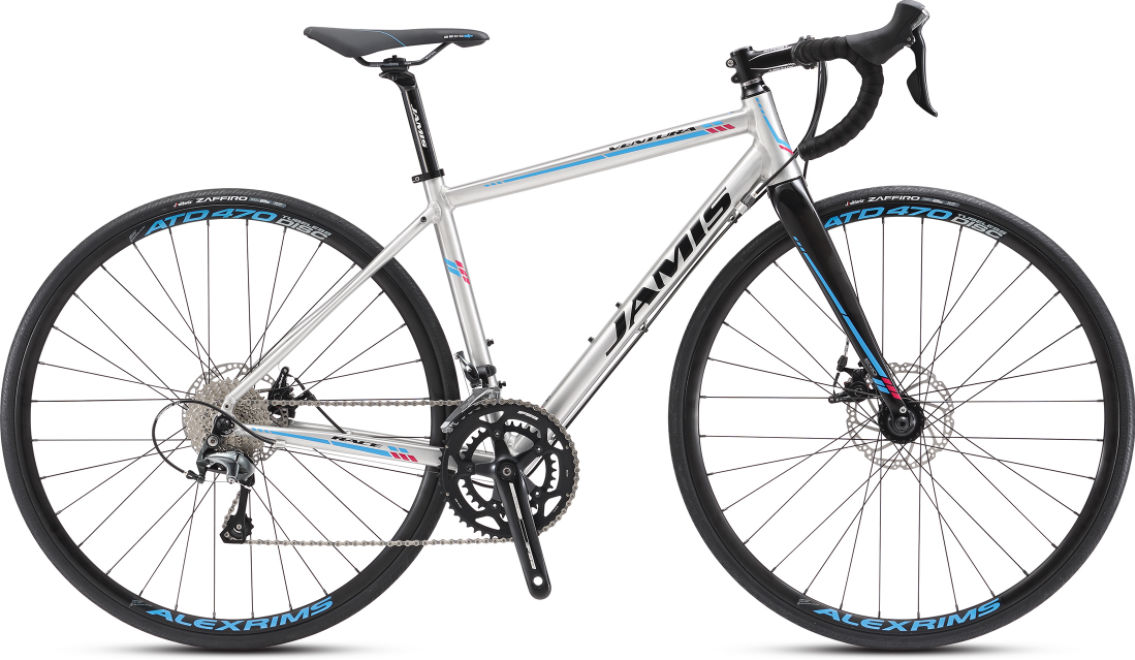

2017 Jamis Ventura Femme geometry
Full frame geometry for the 2017 Jamis Ventura Femme, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 523 | 358 | 76 | 70.5 | 115 | 491 | 708 | 71 | 415 | 980 | 50 |
| 48 | 538 | 363 | 75.5 | 71 | 130 | 505 | 734 | 70 | 415 | 987 | 50 |
| 51 | 561 | 368 | 75 | 71 | 155 | 521 | 767 | 70 | 415 | 1000 | 50 |
| 54 | 580 | 375 | 74.5 | 71 | 170 | 537 | 786 | 68 | 420 | 1001 | 43 |
All measurements in millimetres unless marked (°) for angles.
