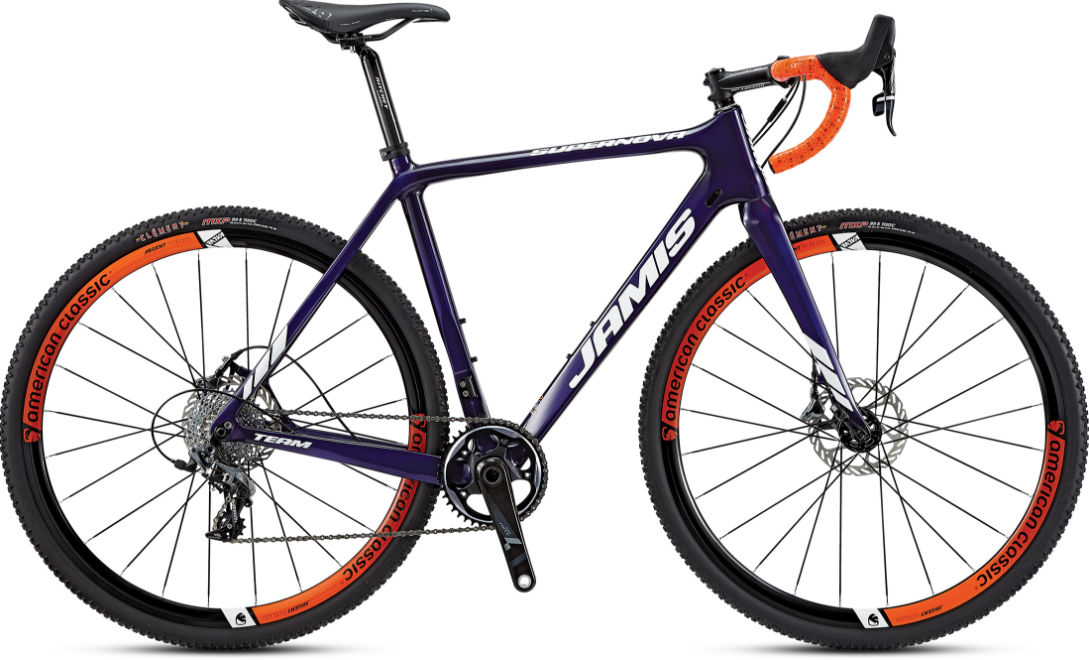

2017 Jamis Supernova geometry
Full frame geometry for the 2017 Jamis Supernova, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 51 | 559 | 367 | 74 | 71.5 | 130 | 529 | 471 | 775 | 69 | 425 | 1001 | 48 |
| 54 | 575 | 368 | 73 | 72 | 145 | 545 | 501 | 797 | 69 | 425 | 1002 | 48 |
| 56 | 592 | 379 | 73 | 72.5 | 160 | 560 | 519 | 815 | 69 | 425 | 1013 | 48 |
| 58 | 604 | 385 | 72.5 | 72.5 | 175 | 575 | 532 | 832 | 69 | 425 | 1024 | 48 |
| 61 | 630 | 391 | 72 | 73 | 200 | 595 | 570 | 859 | 69 | 425 | 1033 | 48 |
All measurements in millimetres unless marked (°) for angles.
