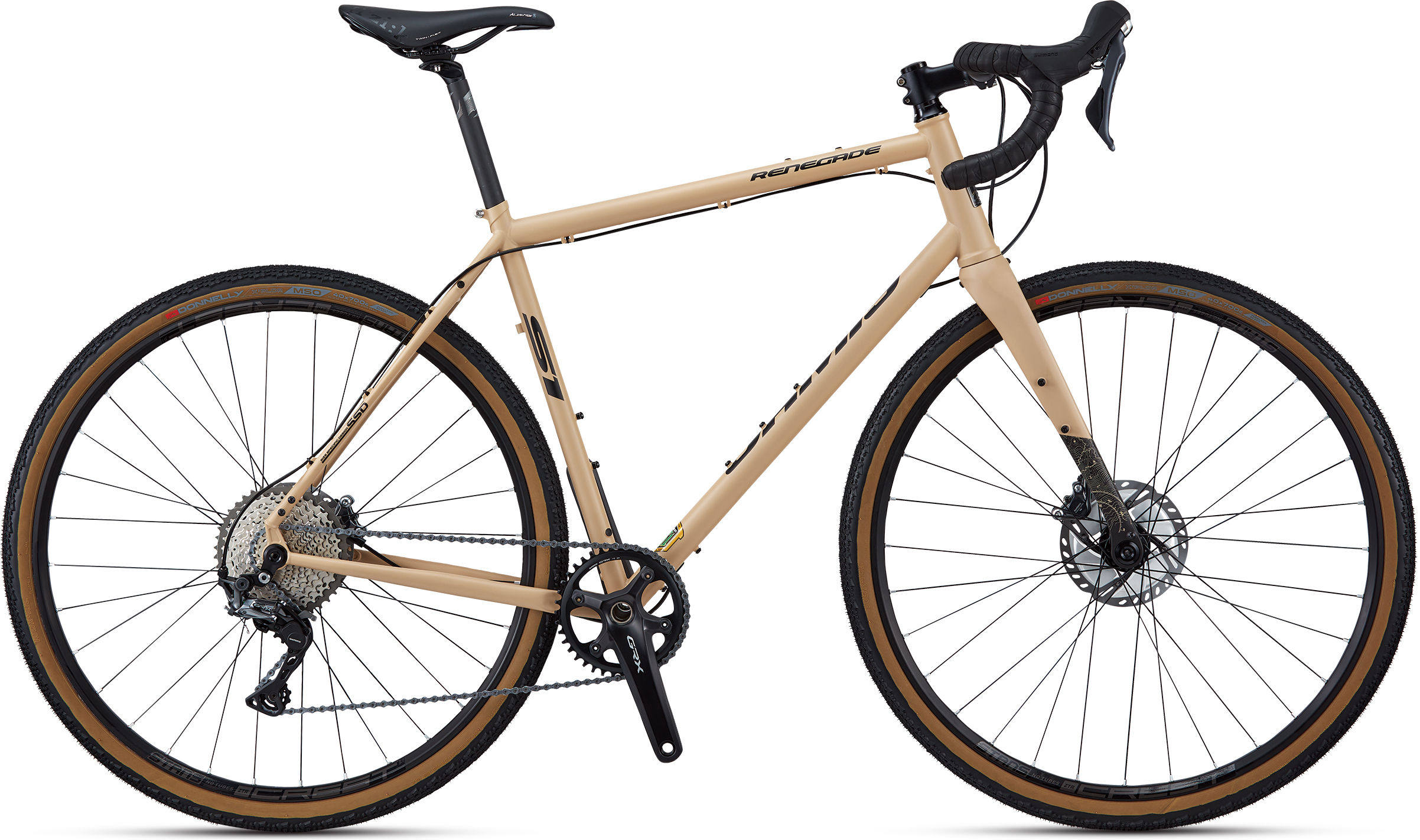

2019 Jamis Renegade S 631 geometry
Full frame geometry for the 2019 Jamis Renegade S 631, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 505 | 351 | 73 | 71 | 121 | 502 | 715 | 54 | 424 | 980 | 50 |
| 48 | 525 | 360 | 73 | 71 | 142 | 521 | 732 | 54 | 424 | 995 | 50 |
| 51 | 545 | 369 | 73 | 71 | 124 | 536 | 759 | 74 | 427 | 1008 | 53 |
| 54 | 575 | 378 | 73 | 71.5 | 155 | 554 | 790 | 72 | 430 | 1026 | 53 |
| 56 | 605 | 387 | 73 | 71.5 | 187 | 572 | 811 | 72 | 430 | 1045 | 53 |
| 58 | 630 | 396 | 73 | 72 | 211 | 589 | 835 | 70 | 430 | 1055 | 50 |
| 61 | 650 | 405 | 73 | 72.5 | 230 | 604 | 856 | 70 | 435 | 1064 | 50 |
All measurements in millimetres unless marked (°) for angles.
