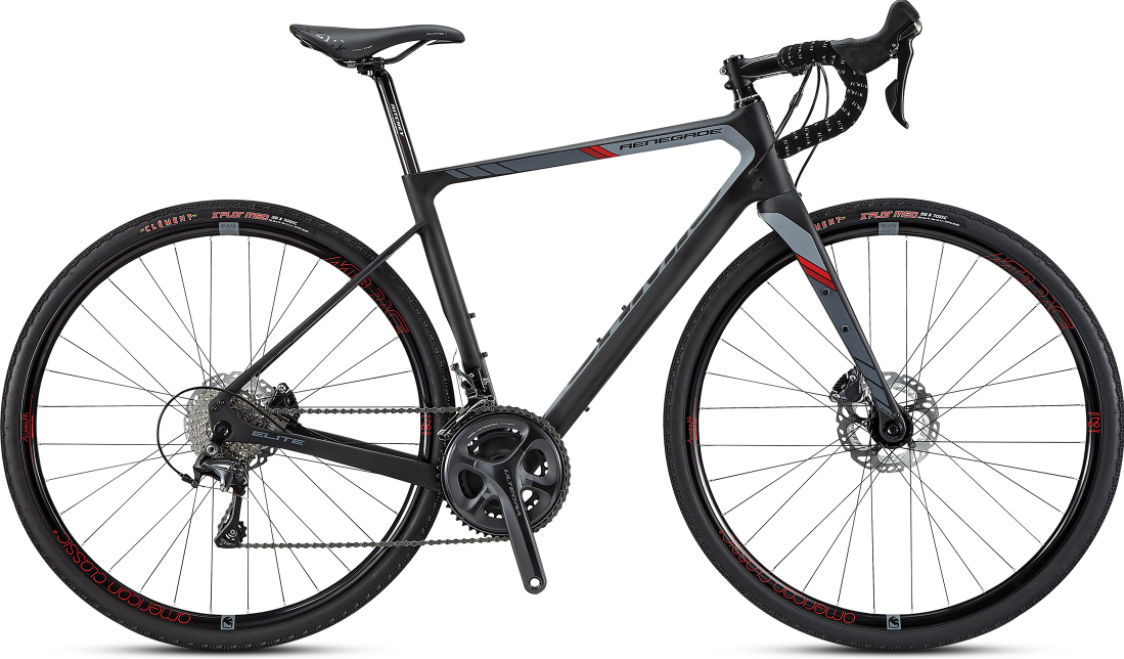

2017 Jamis Renegade C MKII geometry
Full frame geometry for the 2017 Jamis Renegade C MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 515 | 360 | 73 | 70.5 | 96 | 517 | 729 | 74 | 427 | 997 | 57 |
| 51 | 535 | 369 | 73 | 71 | 114 | 532 | 752 | 74 | 427 | 1005 | 53 |
| 54 | 565 | 378 | 73 | 71.5 | 146 | 551 | 785 | 72 | 430 | 1023 | 53 |
| 56 | 595 | 387 | 73 | 71.5 | 177 | 569 | 808 | 72 | 430 | 1042 | 53 |
| 58 | 620 | 396 | 73 | 72 | 202 | 586 | 830 | 70 | 430 | 1051 | 50 |
| 61 | 640 | 405 | 73 | 72.5 | 221 | 601 | 853 | 70 | 435 | 1066 | 50 |
All measurements in millimetres unless marked (°) for angles.
