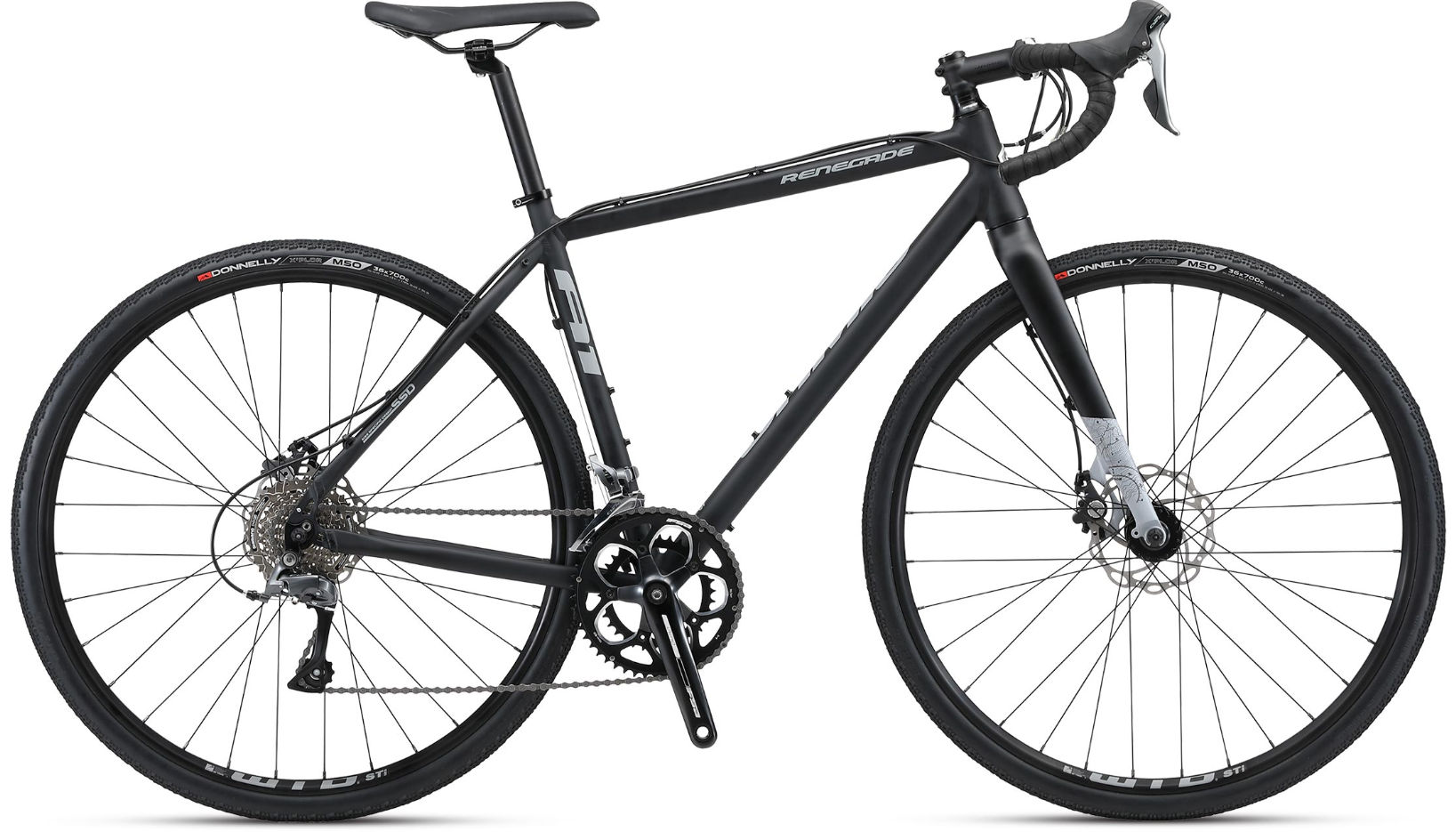

2019 Jamis Renegade A MKII geometry
Full frame geometry for the 2019 Jamis Renegade A MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 44 | 498 | 350 | 73 | 71 | 105 | 502 | 713 | 54 | 424 | 974 | 50 |
| 48 | 521 | 359 | 73 | 71 | 130 | 518 | 731 | 54 | 424 | 991 | 50 |
| 51 | 544 | 367 | 73 | 71 | 105 | 537 | 735 | 74 | 427 | 1009 | 53 |
| 54 | 573 | 376 | 73 | 71.5 | 135 | 556 | 775 | 72 | 430 | 1027 | 53 |
| 56 | 601 | 386 | 73 | 71.5 | 165 | 574 | 800 | 72 | 430 | 1046 | 53 |
| 58 | 626 | 395 | 73 | 72 | 190 | 591 | 824 | 70 | 430 | 1056 | 50 |
| 61 | 647 | 404 | 73 | 72.5 | 210 | 601 | 845 | 70 | 435 | 1071 | 50 |
All measurements in millimetres unless marked (°) for angles.
