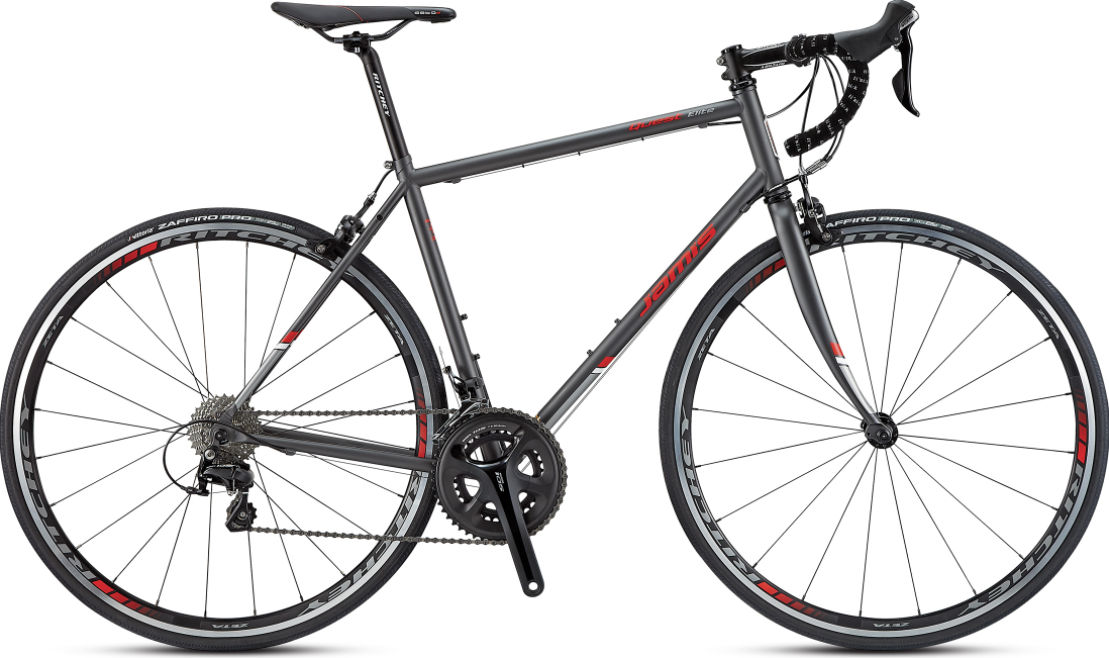

2017 Jamis Quest geometry
Full frame geometry for the 2017 Jamis Quest, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 547 | 367 | 75 | 71 | 133 | 514 | 737 | 71 | 415 | 993 | 50 |
| 51 | 566 | 371 | 74 | 72 | 151 | 534 | 768 | 70 | 415 | 994 | 50 |
| 54 | 586 | 376 | 73 | 72.5 | 168 | 555 | 787 | 68 | 420 | 999 | 43 |
| 56 | 605 | 380 | 73 | 73 | 186 | 565 | 807 | 68 | 420 | 1004 | 43 |
| 58 | 624 | 383 | 73 | 73 | 207 | 574 | 825 | 66 | 425 | 1018 | 43 |
| 61 | 645 | 388 | 73 | 73 | 227 | 584 | 844 | 66 | 425 | 1028 | 43 |
All measurements in millimetres unless marked (°) for angles.
