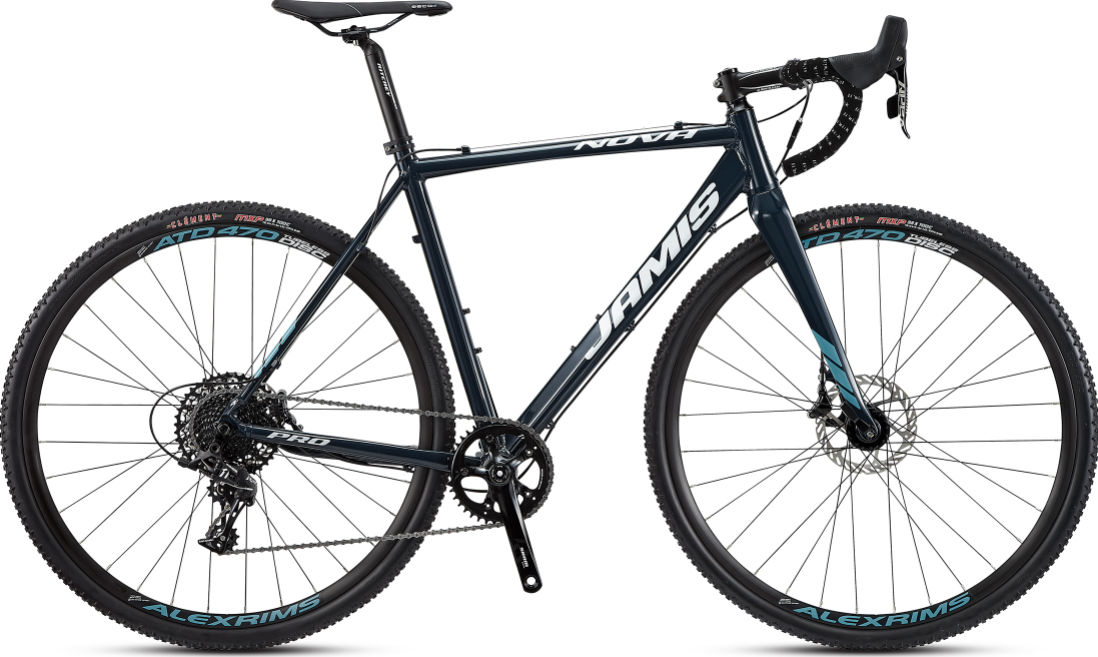

2017 Jamis Nova geometry
Full frame geometry for the 2017 Jamis Nova, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 529 | 370 | 75 | 71 | 100 | 515 | 446 | 750 | 69 | 425 | 999 | 48 |
| 51 | 545 | 372 | 74 | 71.5 | 115 | 530 | 476 | 771 | 69 | 425 | 1001 | 48 |
| 54 | 561 | 373 | 73 | 72 | 130 | 545 | 506 | 793 | 69 | 425 | 1002 | 48 |
| 56 | 577 | 390 | 73 | 72.5 | 145 | 560 | 526 | 811 | 69 | 425 | 1013 | 48 |
| 58 | 590 | 388 | 72.5 | 72.5 | 160 | 575 | 546 | 827 | 67 | 425 | 1024 | 48 |
| 61 | 615 | 396 | 72 | 73 | 185 | 595 | 577 | 854 | 67 | 425 | 1033 | 48 |
All measurements in millimetres unless marked (°) for angles.
