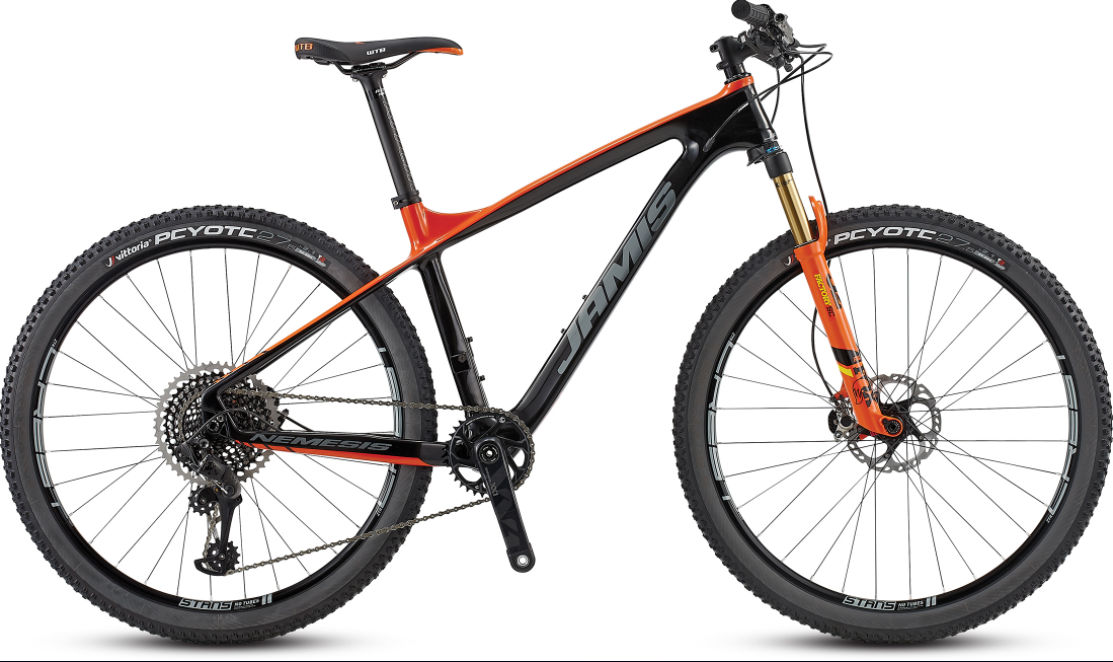

2017 Jamis Nemesis geometry
Full frame geometry for the 2017 Jamis Nemesis, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 582 | 371 | 72.5 | 70 | 100 | 560 | 750 | 42 | 435 | 1045 |
| 17 | 591 | 393 | 72.5 | 70 | 110 | 585 | 785 | 42 | 435 | 1070 |
| 19 | 610 | 407 | 72.5 | 70 | 130 | 605 | 797 | 42 | 435 | 1091 |
| 21 | 619 | 424 | 72.5 | 70 | 140 | 625 | 815 | 42 | 435 | 1112 |
All measurements in millimetres unless marked (°) for angles.
