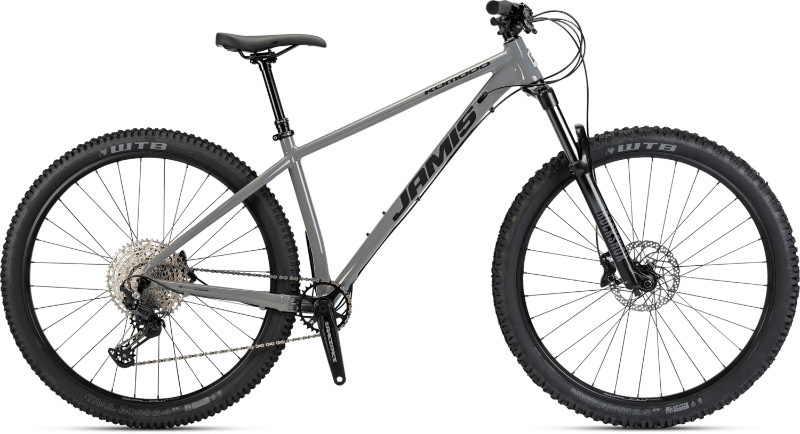

2022 Jamis Komodo 29 geometry
Full frame geometry for the 2022 Jamis Komodo 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 627 | 440 | 76 | 65 | 100 | 597 | 744 | 60 | 435 | 1192 | 51 |
| 17 | 636 | 463 | 76 | 65 | 110 | 622 | 779 | 60 | 435 | 1219 | 51 |
| 19 | 646 | 487 | 76 | 65 | 120 | 648 | 805 | 60 | 435 | 1247 | 51 |
| 21 | 655 | 510 | 76 | 65 | 130 | 673 | 831 | 60 | 435 | 1274 | 51 |
All measurements in millimetres unless marked (°) for angles.
