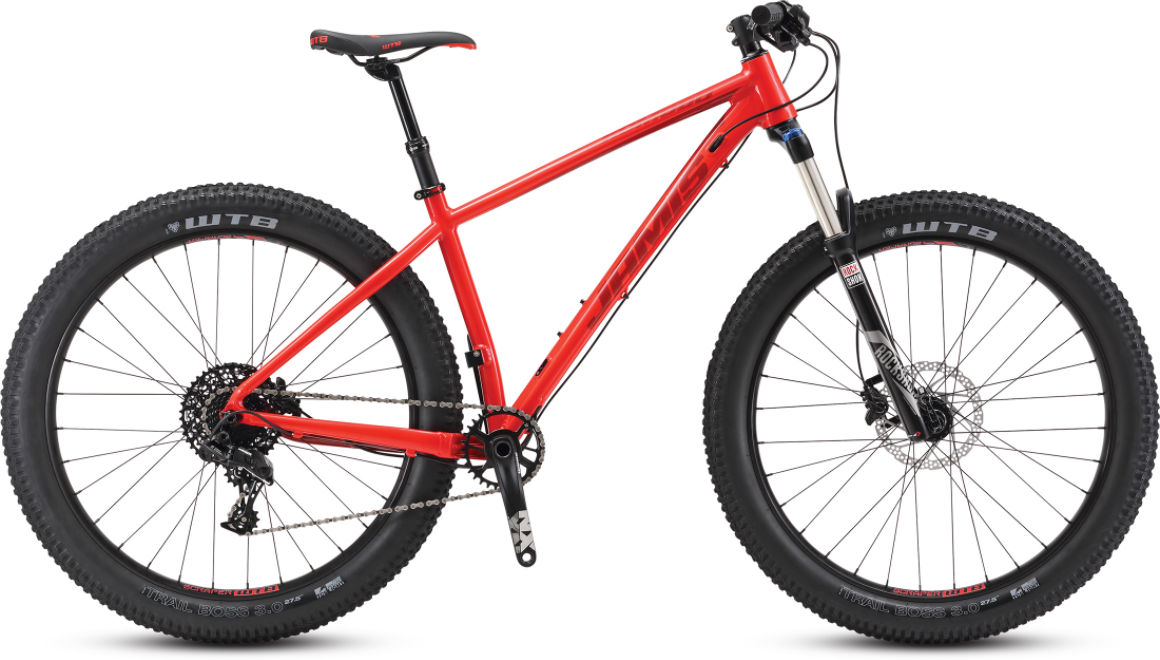

2017 Jamis Komodo 27.5 geometry
Full frame geometry for the 2017 Jamis Komodo 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 557 | 395 | 73 | 68 | 90 | 580 | 763 | 47 | 435 | 1108 |
| 17 | 575 | 410 | 73 | 68 | 110 | 600 | 790 | 47 | 435 | 1130 |
| 19 | 585 | 427 | 73 | 68 | 120 | 620 | 825 | 47 | 435 | 1151 |
| 21 | 603 | 448 | 73 | 68 | 140 | 640 | 861 | 47 | 435 | 1179 |
All measurements in millimetres unless marked (°) for angles.
