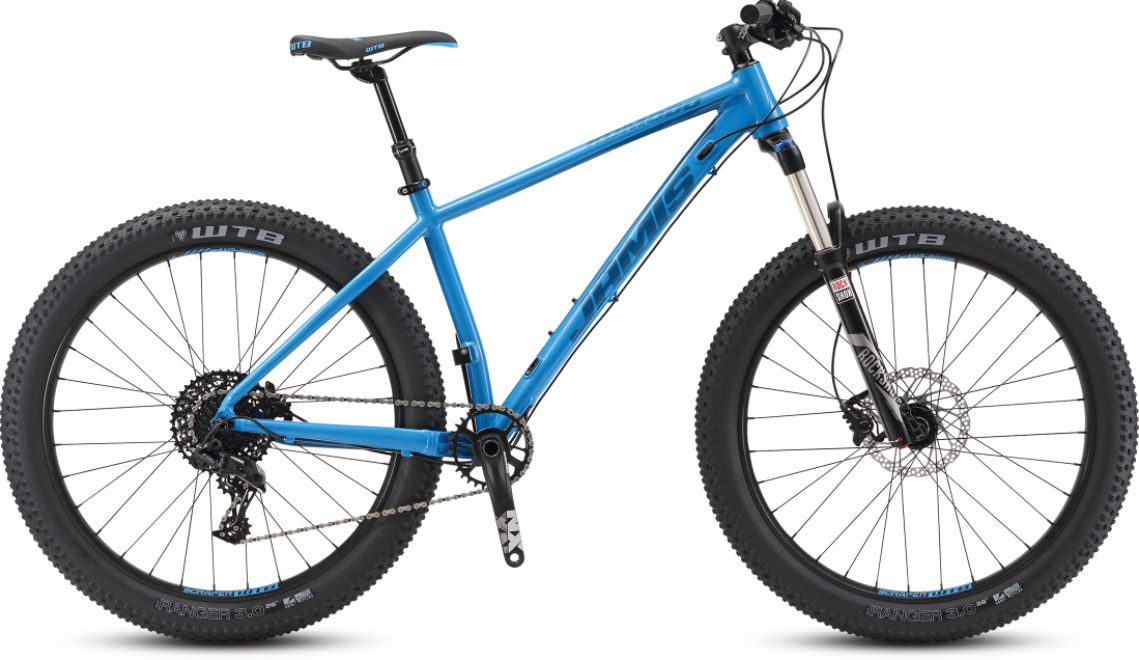

2017 Jamis Komodo 26 geometry
Full frame geometry for the 2017 Jamis Komodo 26, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 544 | 395 | 73 | 68 | 100 | 575 | 738 | 39 | 425 | 1086 |
| 17 | 552 | 412 | 73 | 68 | 110 | 595 | 759 | 39 | 425 | 1107 |
| 19 | 580 | 426 | 73 | 68 | 130 | 615 | 813 | 39 | 425 | 1118 |
| 21 | 589 | 449 | 73.5 | 68 | 140 | 635 | 846 | 39 | 425 | 1157 |
All measurements in millimetres unless marked (°) for angles.
