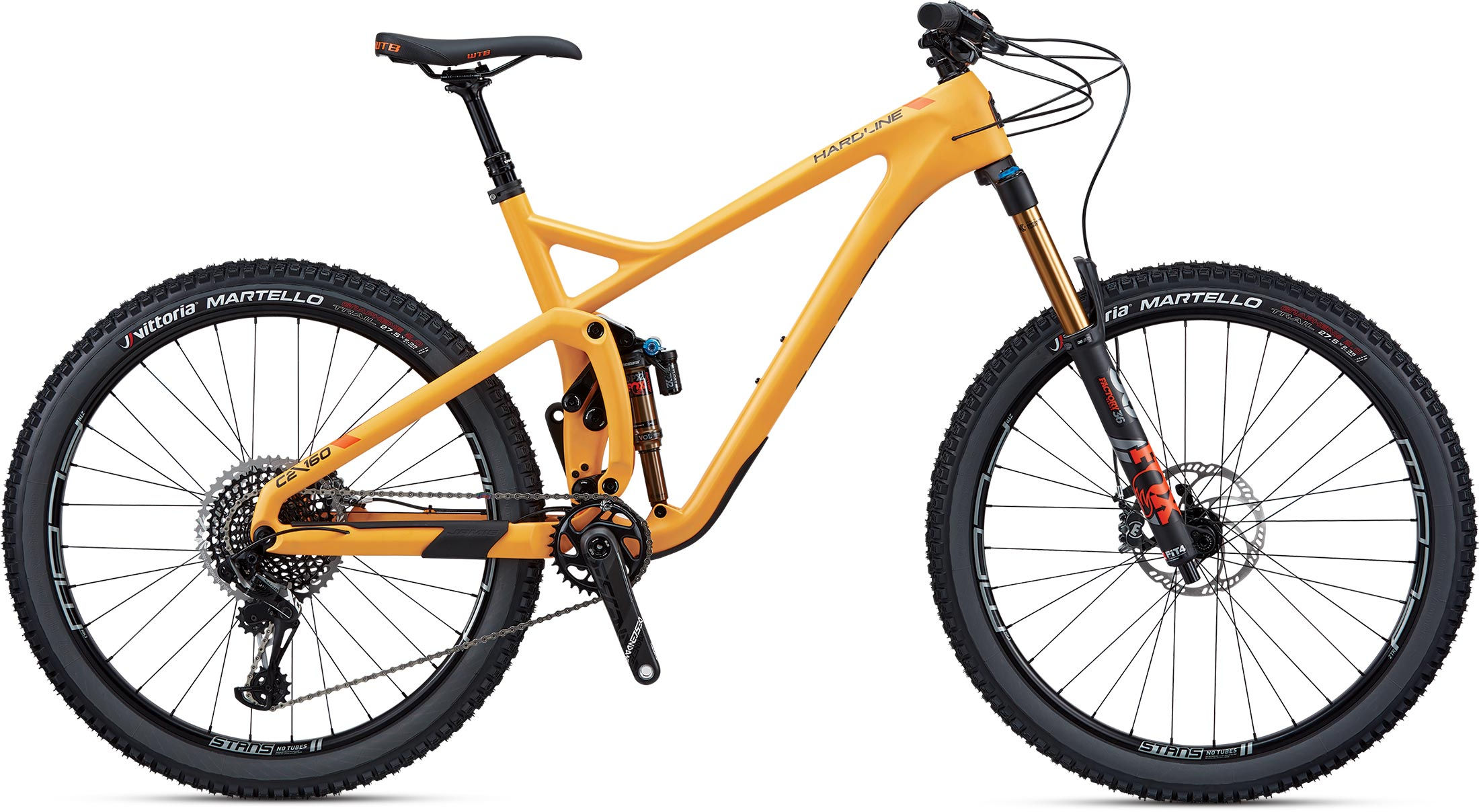

2020 Jamis Hardline C geometry
Full frame geometry for the 2020 Jamis Hardline C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S/15.5 | 585 | 418 | 74 | 65.5 | 100 | 585 | 751 | 14 | 728 | 429 | 1157 |
| M/17 | 595 | 439 | 74 | 65.5 | 110 | 610 | 745 | 14 | 753 | 429 | 1182 |
| L/19 | 604 | 461 | 74 | 65.5 | 120 | 635 | 749 | 14 | 779 | 429 | 1208 |
| XL/21 | 613 | 482 | 74 | 65.5 | 130 | 660 | 765 | 14 | 804 | 429 | 1233 |
All measurements in millimetres unless marked (°) for angles.
