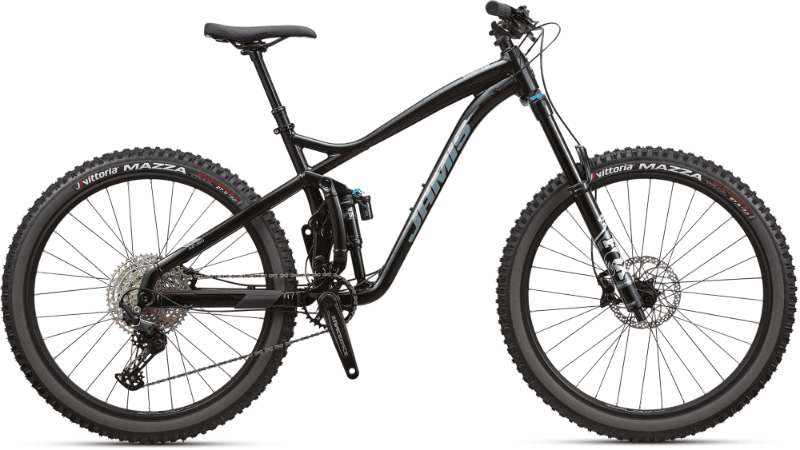

2021 Jamis Hardline 3VO A geometry
Full frame geometry for the 2021 Jamis Hardline 3VO A, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 585 | 418 | 73.5 | 65 | 100 | 585 | 751 | 13.5 | 429 | 1157 | 44 |
| M | 595 | 439 | 73.5 | 65 | 110 | 610 | 745 | 13.5 | 429 | 1182 | 44 |
| L | 604 | 461 | 73.5 | 65 | 120 | 635 | 749 | 13.5 | 429 | 1208 | 44 |
| XL | 613 | 482 | 73.5 | 65 | 130 | 660 | 765 | 13.5 | 429 | 1233 | 44 |
All measurements in millimetres unless marked (°) for angles.
