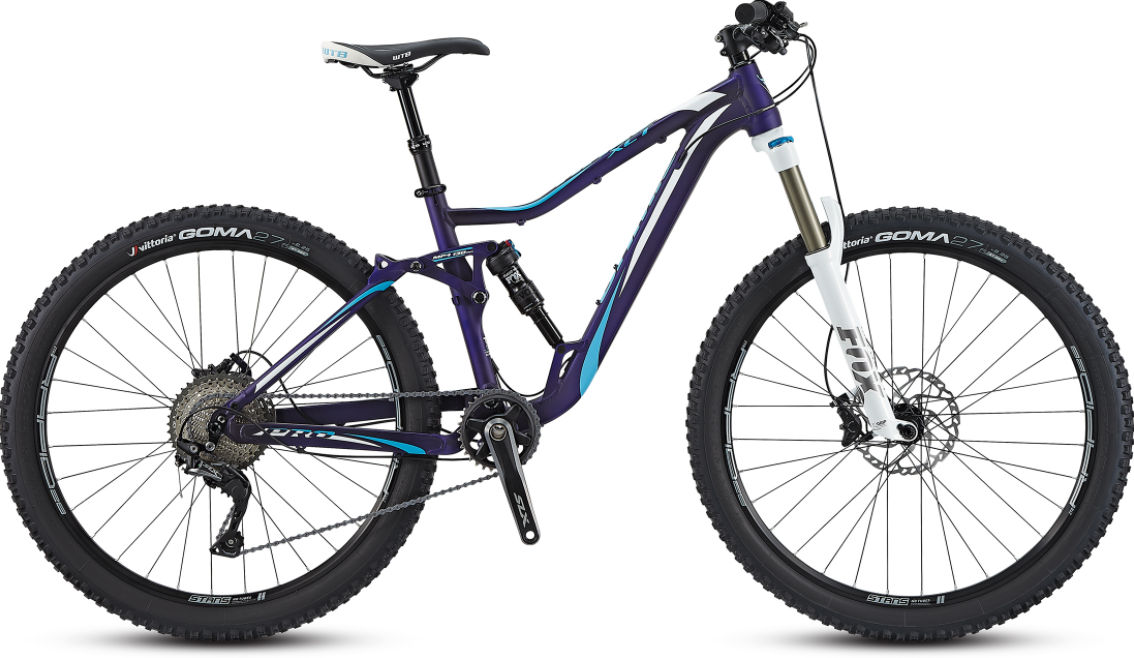

2017 Jamis Halo XCT geometry
Full frame geometry for the 2017 Jamis Halo XCT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 576 | 378 | 74 | 69 | 100 | 450 | 737 | 13 | 450 | 1090 |
| 16 | 585 | 390 | 74 | 69 | 110 | 560 | 755 | 13 | 450 | 1106 |
| 18 | 595 | 407 | 74 | 69 | 120 | 580 | 779 | 13 | 450 | 1127 |
All measurements in millimetres unless marked (°) for angles.
