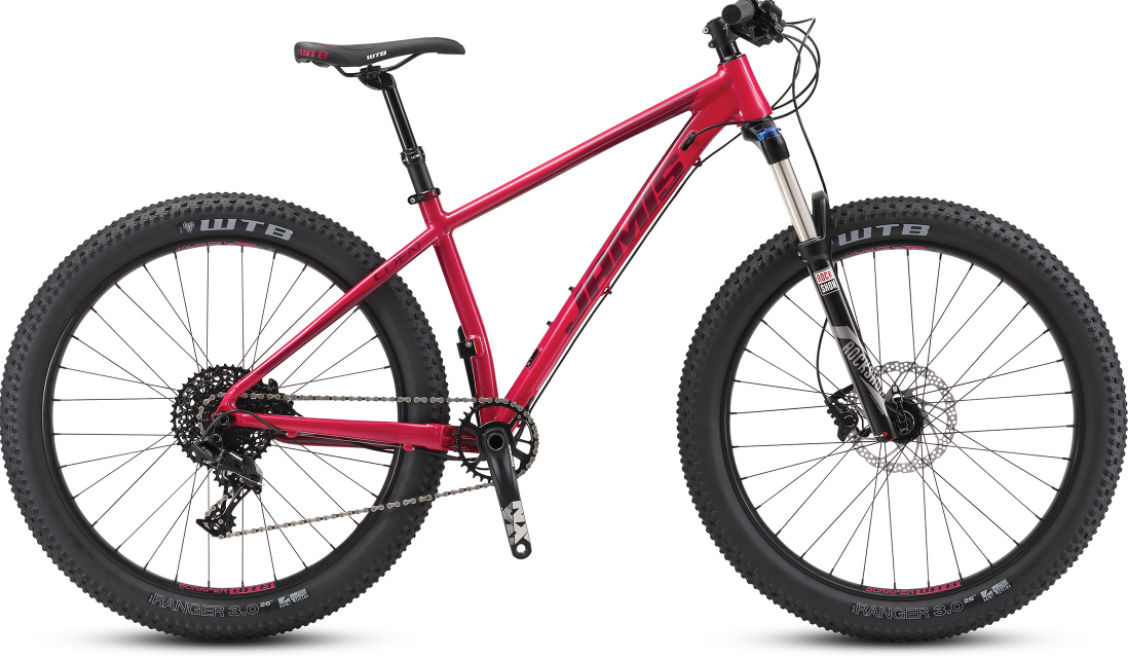

2017 Jamis Eden geometry
Full frame geometry for the 2017 Jamis Eden, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 547 | 361 | 73 | 68 | 95 | 540 | 718 | 38 | 425 | 1051 |
| 16 | 552 | 380 | 73 | 68 | 100 | 560 | 752 | 38 | 425 | 1071 |
| 18 | 556 | 398 | 73 | 68 | 105 | 580 | 781 | 38 | 425 | 1091 |
All measurements in millimetres unless marked (°) for angles.
