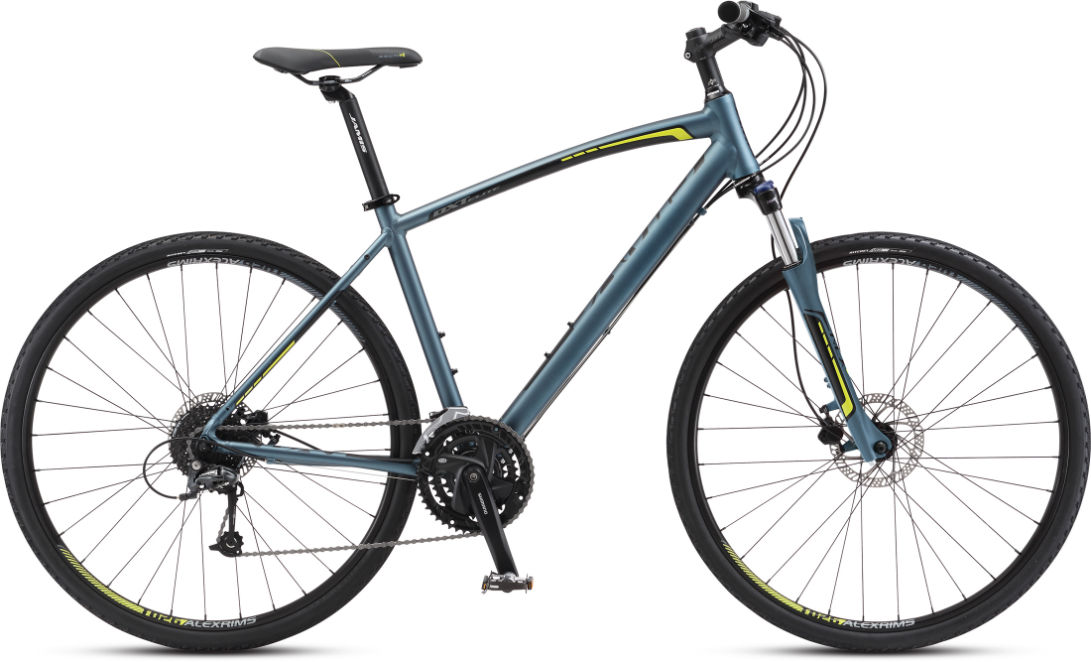

2017 Jamis DXT geometry
Full frame geometry for the 2017 Jamis DXT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 23 | 542 | 432 | 73 | 71 | 175 | 630 | 865 | 60 | 445 | 1118 | 42 |
| 15 | 576 | 408 | 73 | 71 | 105 | 585 | 735 | 60 | 445 | 1071 | 42 |
| 17 | 590 | 418 | 73 | 71 | 120 | 600 | 768 | 60 | 445 | 1086 | 42 |
| 19 | 604 | 424 | 73 | 71 | 135 | 610 | 796 | 60 | 445 | 1097 | 42 |
| 21 | 623 | 433 | 73 | 71 | 155 | 625 | 830 | 60 | 445 | 1112 | 42 |
All measurements in millimetres unless marked (°) for angles.
