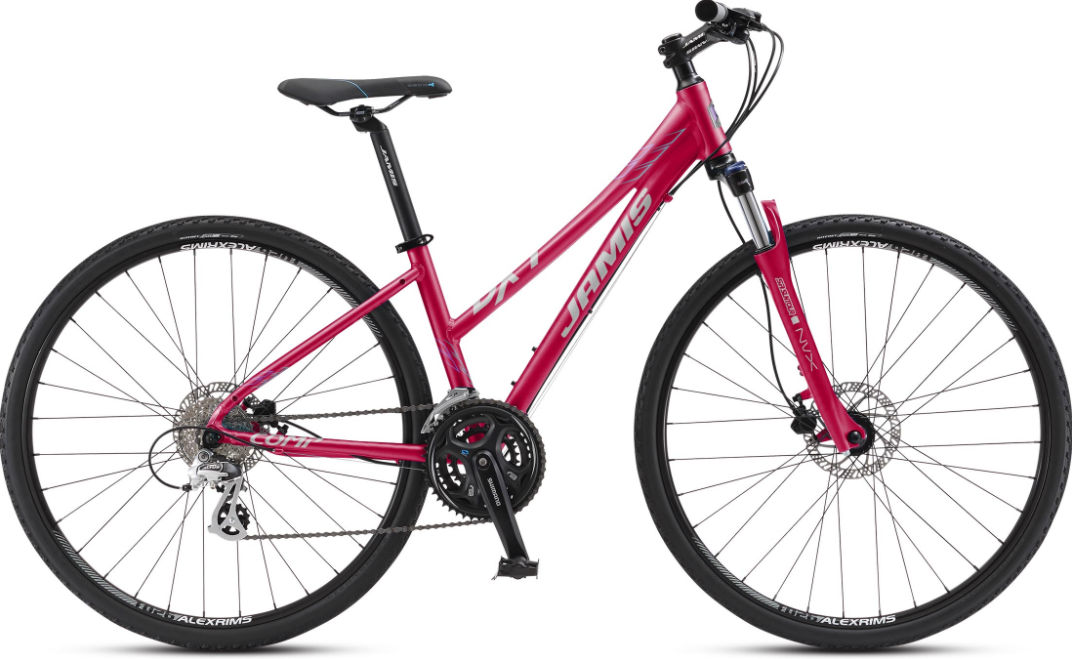

2017 Jamis DXT Femme geometry
Full frame geometry for the 2017 Jamis DXT Femme, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 14 | 583 | 356 | 74.5 | 70.5 | 120 | 520 | 621 | 55 | 435 | 1019 | 42 |
| 18 | 585 | 371 | 74 | 71 | 120 | 540 | 635 | 55 | 435 | 1029 | 42 |
| 20 | 603 | 380 | 73.5 | 72 | 135 | 560 | 639 | 55 | 435 | 1034 | 42 |
All measurements in millimetres unless marked (°) for angles.
