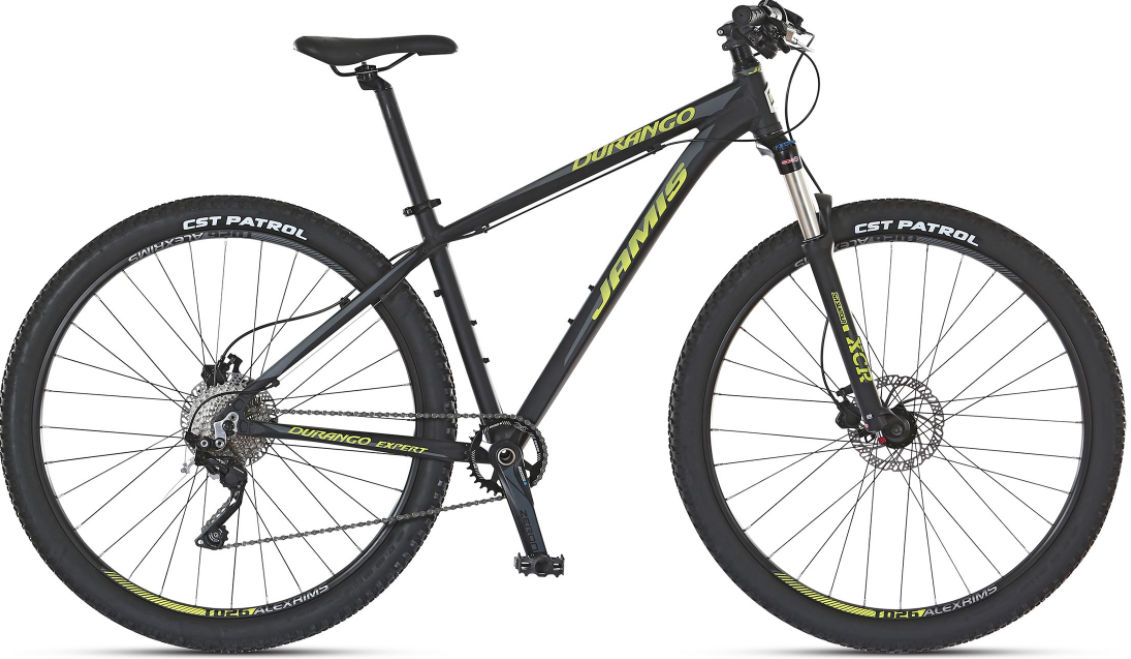

2017 Jamis Durango geometry
Full frame geometry for the 2017 Jamis Durango, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 582 | 371 | 73 | 71 | 105 | 575 | 767 | 57 | 450 | 1074 |
| 17 | 591 | 393 | 72.5 | 71 | 110 | 600 | 785 | 57 | 450 | 1093 |
| 19 | 610 | 407 | 72 | 70 | 110 | 620 | 818 | 57 | 450 | 1118 |
| 21 | 619 | 424 | 72 | 70 | 120 | 640 | 842 | 57 | 450 | 1139 |
All measurements in millimetres unless marked (°) for angles.
