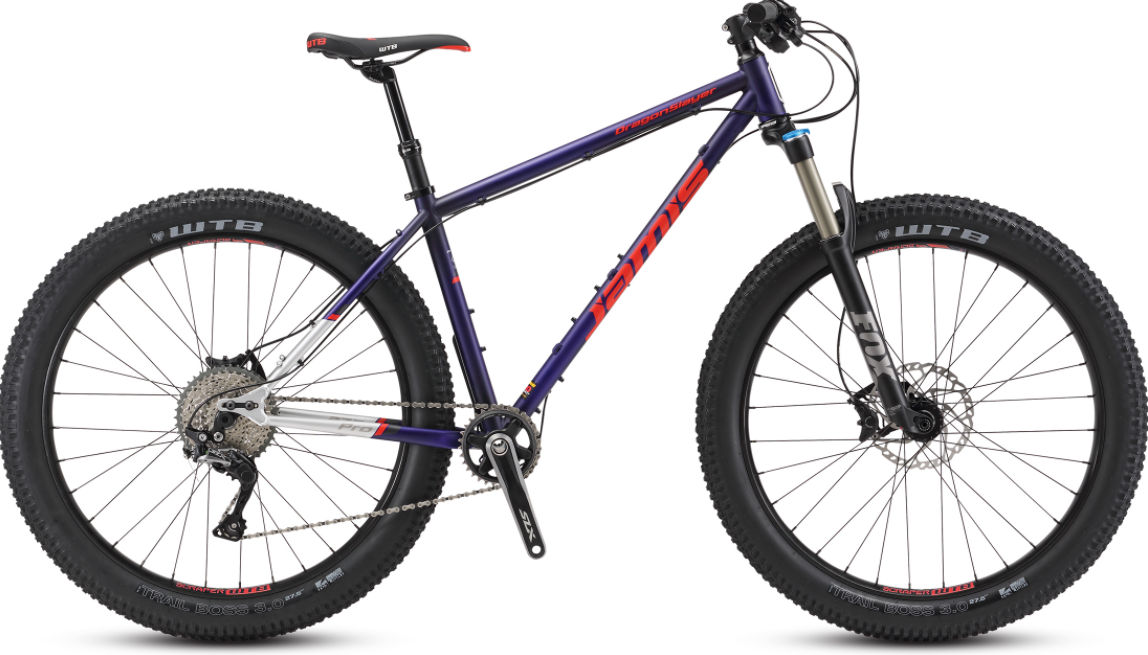

2017 Jamis Dragon Slayer 27.5 geometry
Full frame geometry for the 2017 Jamis Dragon Slayer 27.5, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 621 | 390 | 73 | 68 | 95 | 580 | 773 | 47 | 435 | 1104 |
| 17 | 626 | 408 | 73 | 68 | 100 | 600 | 806 | 47 | 435 | 1130 |
| 19 | 635 | 426 | 73 | 68 | 110 | 620 | 840 | 47 | 435 | 1151 |
| 21 | 653 | 440 | 73 | 68 | 130 | 640 | 876 | 47 | 435 | 1173 |
All measurements in millimetres unless marked (°) for angles.
