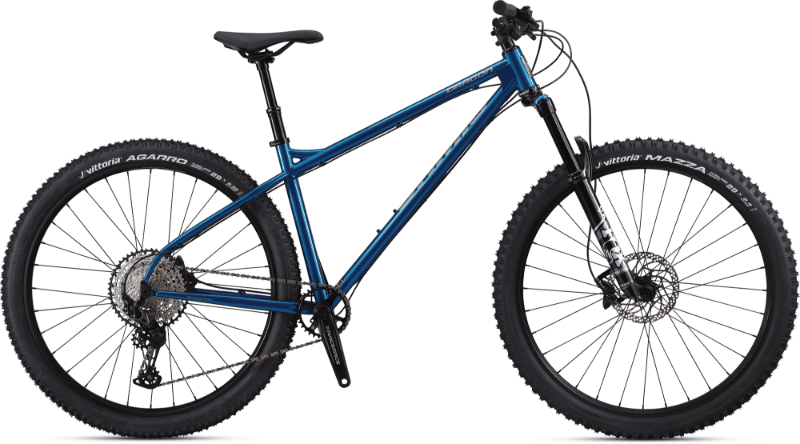

2022 Jamis Dragon 29 geometry
Full frame geometry for the 2022 Jamis Dragon 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 631 | 440 | 76 | 65 | 90 | 597 | 775 | 60 | 435 | 1193 | 51 |
| 17 | 640 | 463 | 76 | 65 | 100 | 622 | 788 | 60 | 435 | 1220 | 51 |
| 19 | 648 | 486 | 76 | 65 | 110 | 648 | 792 | 60 | 435 | 1239 | 51 |
| 21 | 658 | 509 | 76 | 65 | 120 | 673 | 796 | 60 | 435 | 1275 | 51 |
All measurements in millimetres unless marked (°) for angles.
