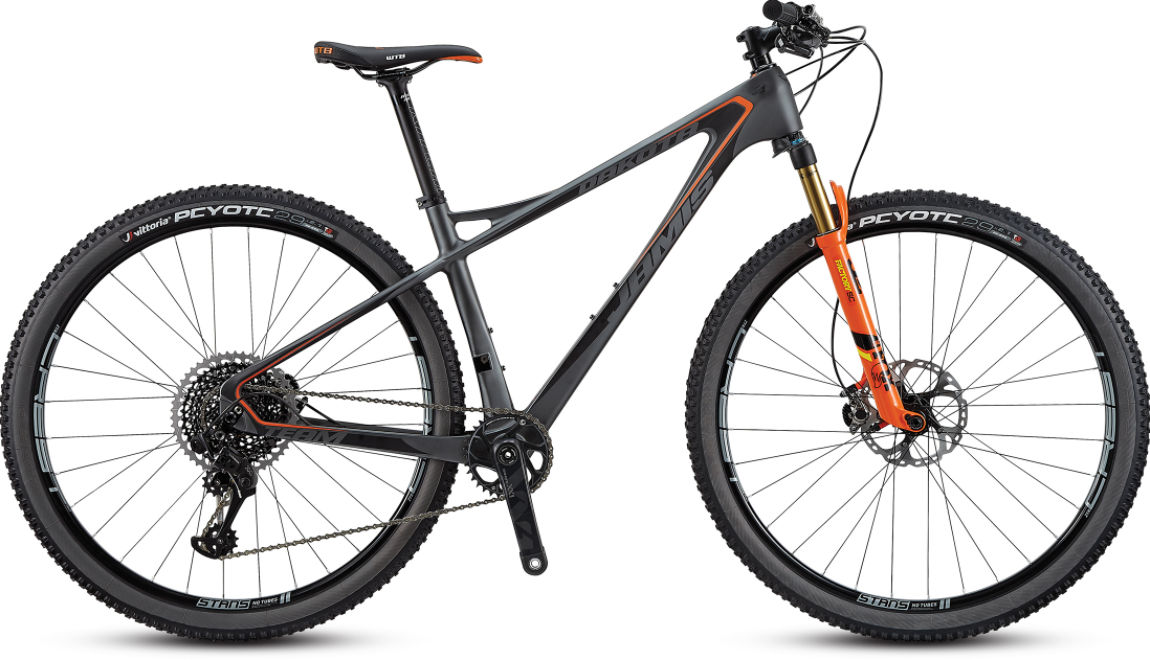

2017 Jamis Dakota geometry
Full frame geometry for the 2017 Jamis Dakota, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 608 | 389 | 73 | 70.5 | 100 | 575 | 752 | 58 | 438 | 1066 |
| 17 | 618 | 410 | 73 | 70.5 | 110 | 600 | 755 | 58 | 438 | 1088 |
| 19 | 623 | 430 | 73 | 70.5 | 115 | 620 | 773 | 58 | 438 | 1112 |
| 21 | 638 | 445 | 73 | 70.5 | 130 | 640 | 817 | 58 | 438 | 1132 |
All measurements in millimetres unless marked (°) for angles.
