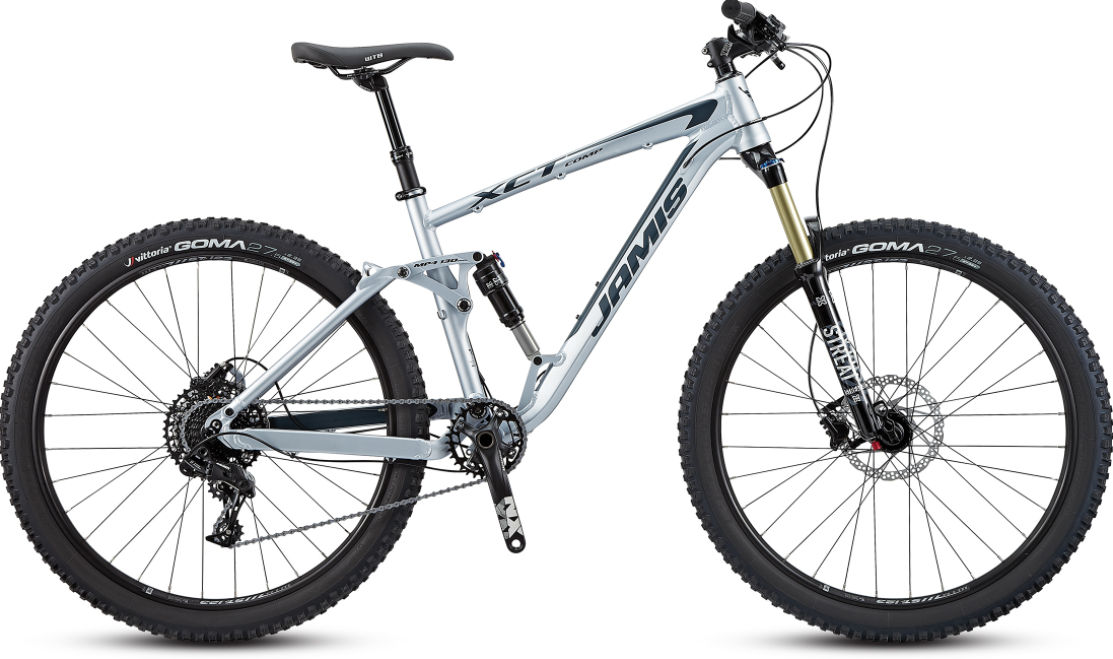

2017 Jamis Dakar XCT geometry
Full frame geometry for the 2017 Jamis Dakar XCT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 590 | 383 | 73 | 69 | 115 | 565 | 780 | 13 | 450 | 1101 |
| 17 | 595 | 402 | 73 | 69 | 120 | 585 | 806 | 13 | 450 | 1121 |
| 19 | 613 | 416 | 73 | 69 | 140 | 605 | 830 | 13 | 450 | 1143 |
| 21 | 623 | 438 | 73.5 | 69 | 150 | 625 | 863 | 13 | 450 | 1169 |
All measurements in millimetres unless marked (°) for angles.
