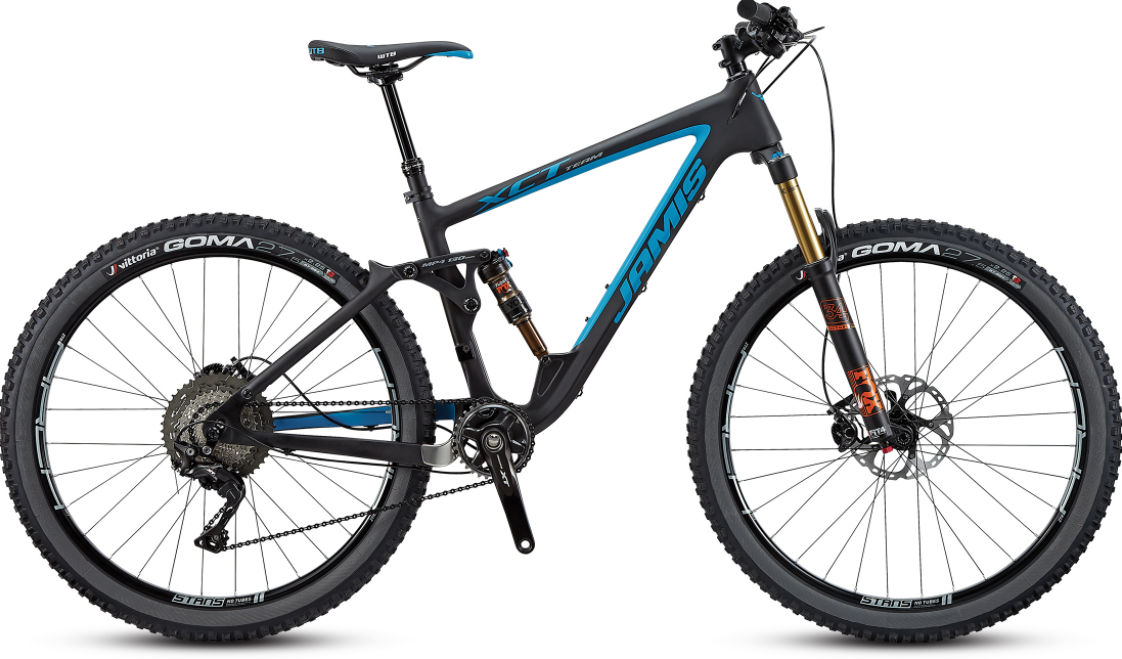

2017 Jamis Dakar XCT Carbon geometry
Full frame geometry for the 2017 Jamis Dakar XCT Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 594 | 391 | 74 | 71 | 105 | 563 | 793 | 35 | 455 | 1086 |
| 17 | 599 | 412 | 74 | 71 | 110 | 585 | 803 | 35 | 455 | 1103 |
| 19 | 599 | 437 | 74 | 71 | 110 | 610 | 812 | 35 | 455 | 1133 |
| 21 | 608 | 450 | 74 | 71 | 120 | 627 | 821 | 35 | 455 | 1150 |
All measurements in millimetres unless marked (°) for angles.
