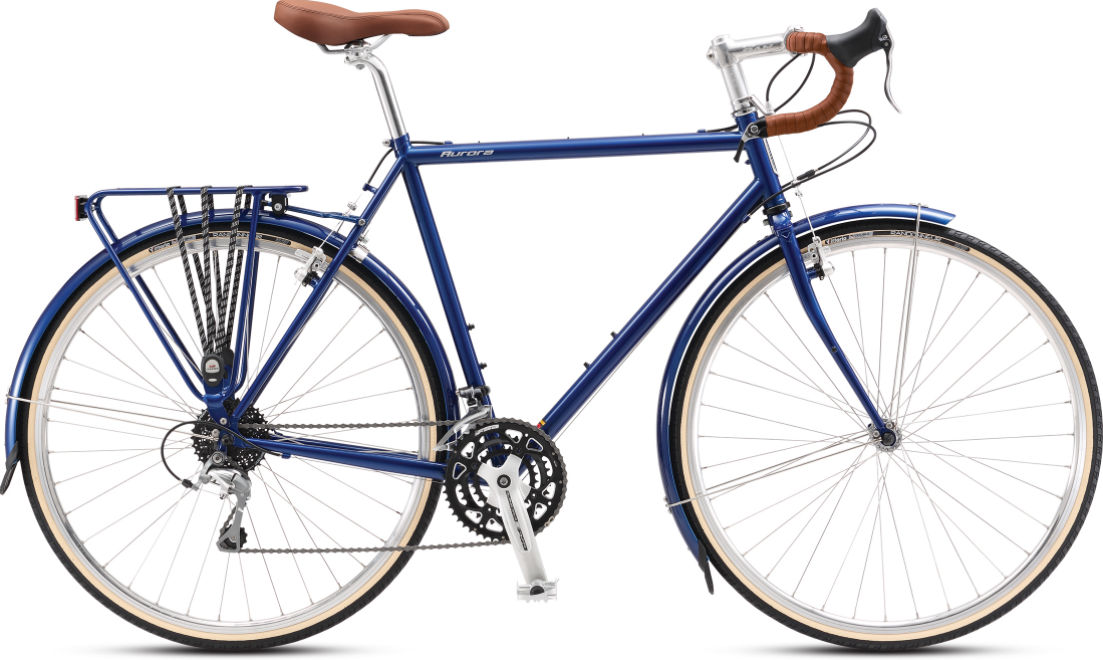

2017 Jamis Aurora MK 2 geometry
Full frame geometry for the 2017 Jamis Aurora MK 2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 521 | 368 | 74 | 70 | 100 | 520 | 710 | 65 | 440 | 1024 | 50 |
| 50 | 541 | 386 | 74 | 71.5 | 115 | 542 | 784 | 65 | 440 | 1033 | 50 |
| 53 | 560 | 380 | 73 | 71.5 | 135 | 552 | 808 | 65 | 440 | 1034 | 50 |
| 55 | 574 | 381 | 73 | 71.5 | 150 | 557 | 827 | 65 | 440 | 1039 | 50 |
| 57 | 588 | 376 | 72 | 71.5 | 165 | 567 | 842 | 65 | 440 | 1039 | 50 |
| 59 | 605 | 381 | 72 | 72 | 180 | 577 | 860 | 65 | 440 | 1044 | 50 |
| 62 | 621 | 389 | 72 | 72.5 | 195 | 590 | 883 | 65 | 440 | 1051 | 50 |
All measurements in millimetres unless marked (°) for angles.
