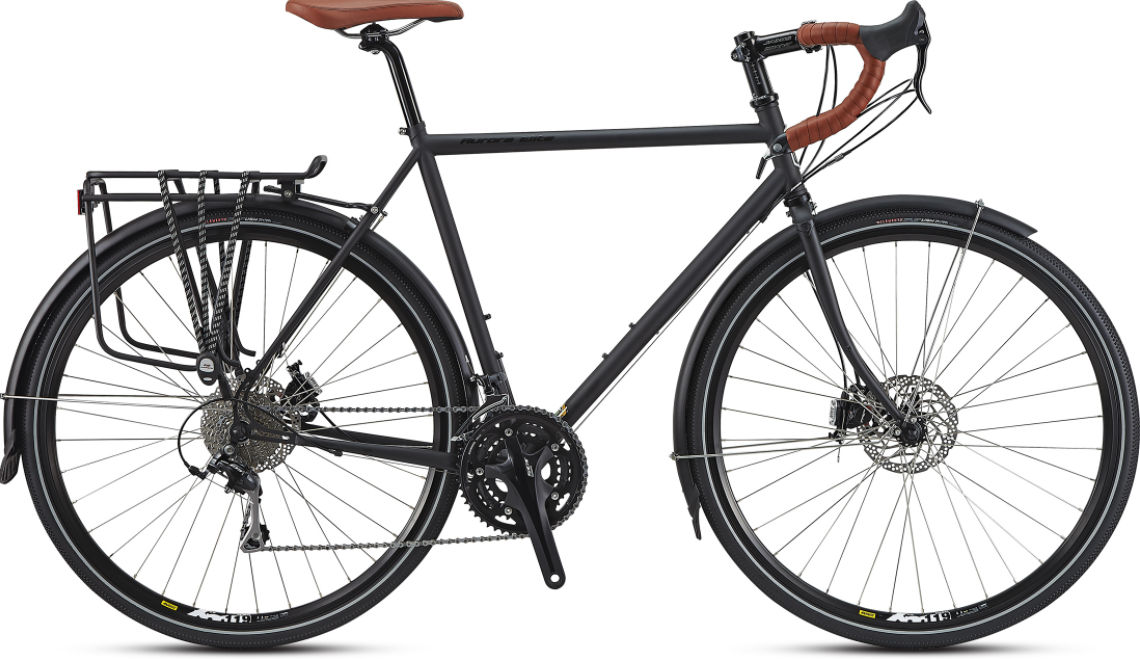

2017 Jamis Aurora Elite geometry
Full frame geometry for the 2017 Jamis Aurora Elite, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 528 | 368 | 74 | 70 | 100 | 520 | 704 | 65 | 440 | 1025 | 50 |
| 50 | 548 | 384 | 74 | 71.5 | 115 | 541 | 790 | 65 | 440 | 1034 | 50 |
| 53 | 567 | 378 | 73 | 71.5 | 135 | 552 | 807 | 65 | 440 | 1034 | 50 |
| 55 | 581 | 386 | 73 | 71.5 | 150 | 562 | 824 | 65 | 440 | 1044 | 50 |
| 57 | 595 | 385 | 72 | 71.5 | 165 | 575 | 840 | 65 | 440 | 1047 | 50 |
| 59 | 611 | 389 | 72 | 72 | 180 | 584 | 858 | 65 | 440 | 1051 | 50 |
| 62 | 628 | 393 | 72 | 72.5 | 195 | 593 | 880 | 65 | 440 | 1055 | 50 |
All measurements in millimetres unless marked (°) for angles.
